doepfer a-180 multiples 1 price : $45.00

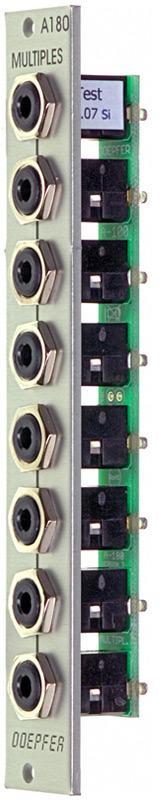

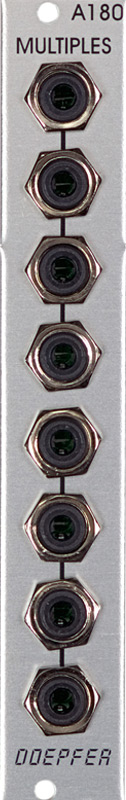

module a-180 is a simple multi-connector. it has eight inter-connected sockets, so that you can patch more inputs or outputs into any module. the sockets can be split into two groups of four by disconnecting an internal solder bridge. even though the a-180 is a very "primitive" low-level module it is required very often. within a big a-100 system sufficient multiples should be planned.

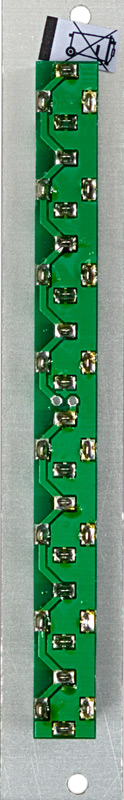

at the suggestion of many a-100 users the modules are delivered as two four-fold multiples as this version is more often needed as an 8-fold multiple. if an 8-fold multiple is required a bridge has to be soldered at the pc board.



this module has a maximum current draw of 0ma. it requires 4 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
