doepfer
a-180-2 multiples

price : $50.00

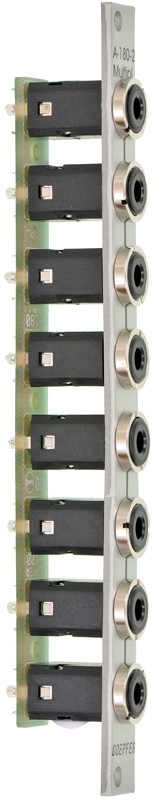

A-180-2 Multiples


a-180-2 multiples: vintage edition

price : $50.00


A-180-2 Multiples: Vintage Edition

modules a-180-1 and a-180-2 are simple multi-connectors. they have eight inter-connected sockets, so that you can "multiply" any audio or control signal. from the factory the modules come as two four-foldmultiples. but they can be modified as an eight-fold multiple (solder bridge on the pcb). though these modules are very "primitive" they are required very often in patches (e.g. to distribute a clock signalor a control voltage). within a big a-100 system sufficient multiples should be planned. the function of a-180-1 and a-180-2 is the same. the modules differ only in the front panel width.



for the distribution of control voltages used for pitch control of several vcos the buffered multiple a-185-2 is recommended. this module has a built in buffer (and a lot of additional features like cvsumming) that avoids small voltage losses that may be heard in pitch control applications.



this module has a maximum current draw of 0ma. it requires 2 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
