doepfer a-182-1 switched multiples
price : $60.00

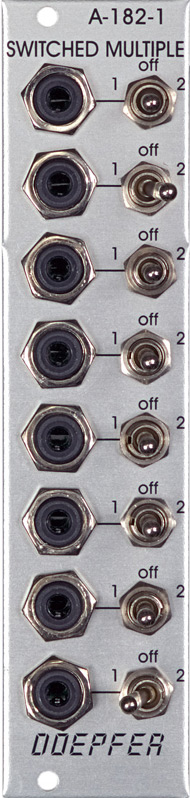

| ![A-182-1 Switch Multiples A-182-1 Switch Multiples](a182.jpg) |

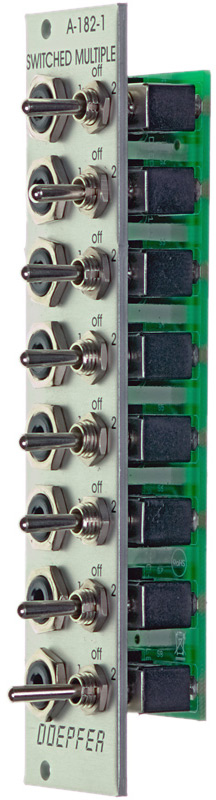

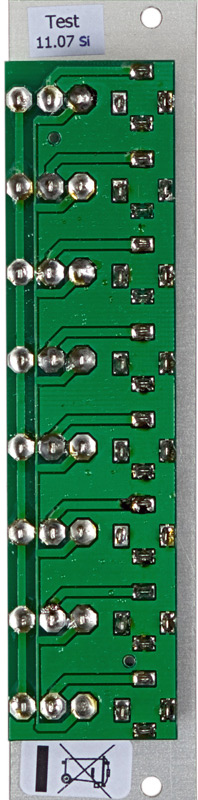

module a-182 is a simple passive multi-connector similar to the multiples module a-180. in contrast to module a-180 each socket is equipped with a 3-position switch that allows to connect the corresponding
socket to the internal bus #1 (left position), bus #2 (right position) or to turn the socket off (center position).
![](sides.jpg)
examples:
all switches in left position or all switches in right position: 8-fold multiple
four switches in left position and four switches in right position: two 4-fold multiple
x switches in left position, y switches in right position and z switches in center position: two separate multiples with some sockets turned off.
![](back.jpg)
this module has a maximum current draw of 0ma. it requires 6 te/hp worth of space to fit in a eurorack frame.
|
