doepfer

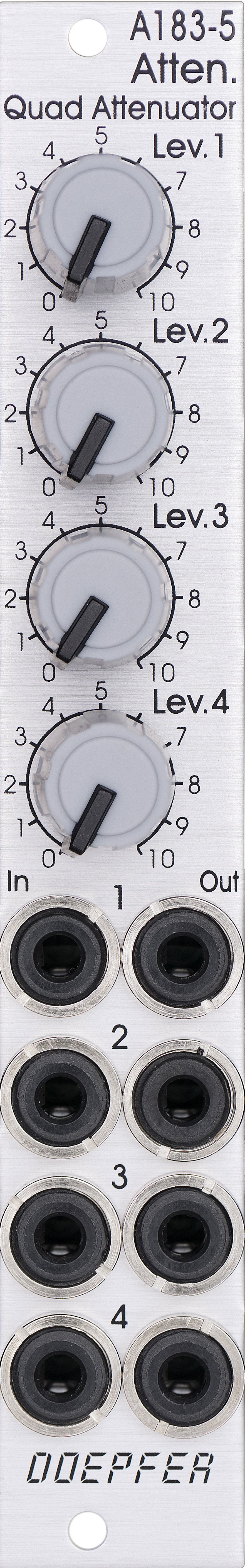

a-183-5 quad attenuator
price : $79.00
|
![A-183-5 Quad Attenuator A-183-5 Quad Attenuator](a-183-5s.jpg) |
module a-183-5 is a simple passive quad attenuator. passive means in this context, that each unit is made of two sockets and a 50k linear potentiometer only. there are no active parts like amplifiers or buffers and no power supply is required. this is how the
a-183-5 works: at the output socket appears the attenuated input signal, i.e. zero level at the fully ccw position and max. level and the fully cw position.
applications:
adjustable level of cv or audio signals to control other modules that do not have attenuators available.
technical notes regarding modifications:
this document describes these modifications:
normalling the inputs
using the module as control voltage source (replacement for a-176)
this module has a maximum current draw of 0ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
|
