doepfer
a-185-1 bus access

price : $65.00



A-185-1 Bus Access

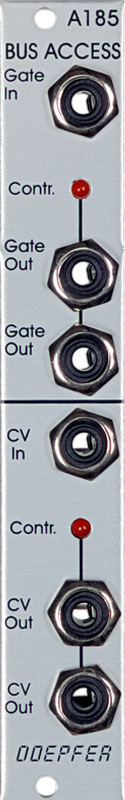

active bus access module to feed cv and gate into the a-100 bus (e.g. when using more than one frame or with external cv/gate interfaces). miniature jack sockets for cv in, gate in, 2xcv out, 2xgate out, 2 leds for cv/gate control.



in general the a-185 is recommended as soon as more than 2 vco's (a-110, a-111) are controlled by the same control voltage source. without interconnection of the a-185 in this case tuning inaccuracies (scale) may occur. the a-185 is mounted close to the vcos. the controlling voltage for all vcos is applied to the cv in socket of the a-185. by means of the cv line of the bus board the cv is connected to all vcos at the same bus board.



this module has a maximum current draw of 30ma. it requires 4 te/hp worth of space to fit in a eurorack frame.

to view this module's user manual as a pdf file, please click here.
