doepfer a-186 gate/trigger combiner
price : $65.00

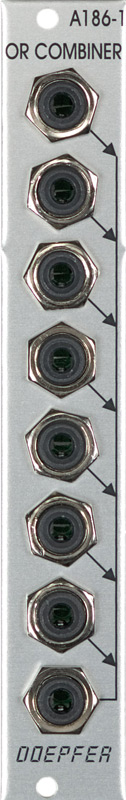

| ![A-186 Gate/Trigger Combiner A-186 Gate/Trigger Combiner](a186.jpg) |

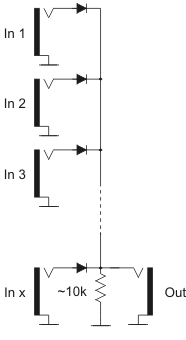

suggestion for a simple module that combines up to 7 gate or trigger signals by or-wiring:
![](or_wired_sockets.gif)
function:
if all seven inputs are low or open the output is low
if one or more of the seven inputs is "high" the output turns high

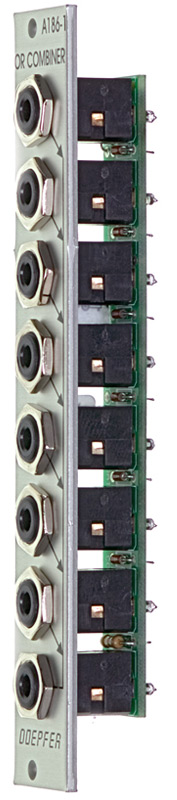

![](sides.jpg)

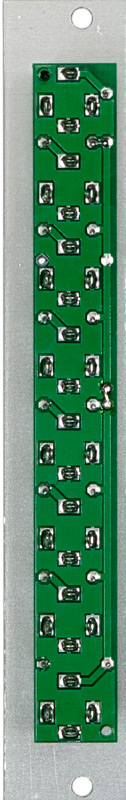

![](backs.jpg)
this module has a maximum current draw of 0ma. it requires 4 te/hp worth of space to fit in a eurorack frame.
|
