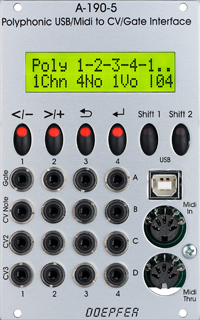

doepfer a-190-5 polyphonic usb/midi-to-cv/gate interface price : $349.00

module a-190-5 is a four voice midi/usb to cv/gate interface. for each voice a pitch control voltage (cv1, 1v/octave standard to control vcos), a gate output (to control envelope generators) and two additional control voltages (cv2, cv3) are available. the two additional cv outputs can be controlled by midi velocity, volume, modulation, after touch or free assignable midi controllers.

the resolution of the cv outputs is 12 bit and the voltage range is 0-10v.

these modes are available:
four voice monophonic (i.e. to control four monophonic voices by four succeeding midi channels)
four voice polyphonic (i.e. to control four monophonic voices by one midi channel)
two voice polyphonic (i.e. to control two monophonic voices by one midi channel)
unisono
details about all available modes of the current firmware version can be found in the user's manual below.

the mode is selected by means of momentary switches and is shown in the lc display. certain parameters of each mode can be edited (e.g. the midi channel(s), the midi reference note for 0v cv, assigned controllers for cv2 and cv3). the parameter values (e.g. midi channels) are shown in the display and can be modified by means of the momentary switches. in play mode the leds of the first four switches display the gate states.

this module has a maximum current draw of 550ma. it requires 16 te/hp worth of space to fit in a eurorack frame.

please click here to download the manual.
