doepfer dial electronics without case & controllers price : $115.00 power supply price : $15.00

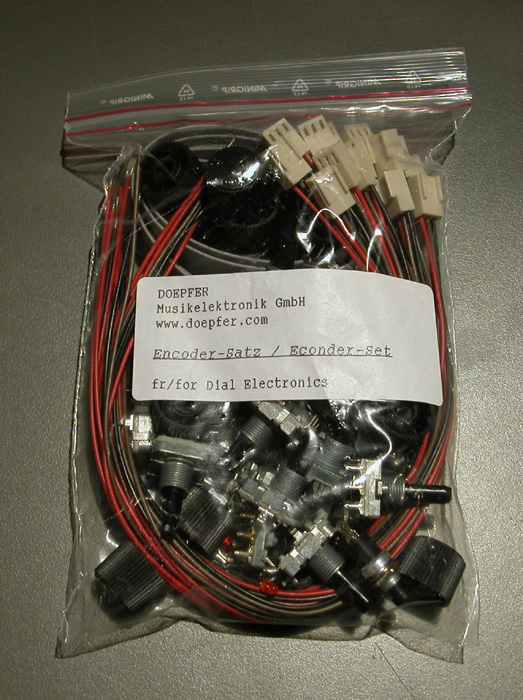

dial electronics control set 16 encoders with black knobs, 6 buttons, 4 leds & cables price : $85.00

dial electronic (abbreviation: "de" in the following) is an universal electronics diy kit to built your own midi control box with 16 rotary encoders (even called alpha dials, endless potentiometers or similar). de generates 16 different midi messages on different (or even the same) midi channels. de can be combined with the universal keyboard electronics, pocket electronic, ctm64 or mtc64 to obtain a unique controller that fits exactly to the user's requirements.

essentially it contains the electronics core of pocket dial but without the 16 controls (i.e. without rotary encoders). concerning the midi functions de is identical to pocket dial. please refer to the pocket dial information for details.

up to 16 rotary encoders can be connected to de and arranged in any positions of the case resp. front panel that has to be built by the customer himself. the controls are not included but have to be added by the customer himself. a suitable control set is available.

the additional controls of pocket dial (6 buttons and 4 leds) can be connected via pin headers to de. buttons and leds are not included with de.

the 16 encoders are connected to 16 pinheaders (3 pins each).

de is available only as an assembled and tested pc board. the pc board measures are about 125 mm (length) x 70 mm (width) x 25 mm (height). six mounting holes with 3 mm diameter are available for mounting the pc board to a suitable base e.g. with distance sleeves or spacers and screws.

we do not offer a suitable housing as this would have to be completely different for various combinations of controlling elements. if you look for a ready built unit please look at pocket dial.

an external power supply (7-12vdc@min. 100ma) is used.

warning : electronic basic knowledge is required to install the de electronics and to connect the controls. when you are not sure if your knowledge is sufficient please consult an expert. we cannot take back modules that became defective because of wrong installation or wrong connection of the controlling elements or voltages. we also cannot take back modules or cables which have been soldered by the user.
