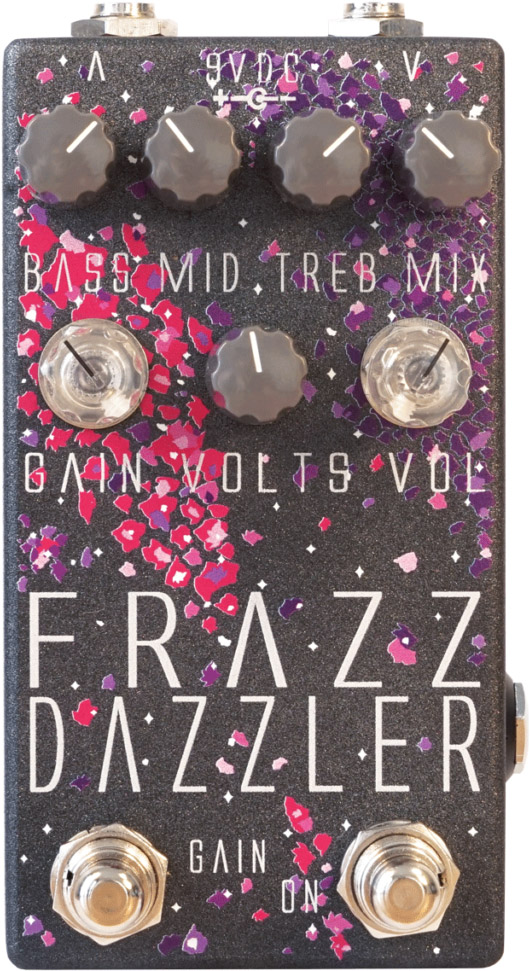

the frazz dazzler is a dual-channel, aggressive fuzz with a wide gain range and a full 3-band equalizer. the frazz uses a unique circuit topology for extremely high gain even on the low gain channel. the high gain channel offers over-the-top saturation with a
built-in noise gate. both channels make use of a variable regulator for a powerful voltage starve system resulting in a range of sounds from lower headroom/more clipping to glitchy, sub-octave tones. like all dr. scientist pedals, the frazz dazzler can be used
with guitar, bass, synths, and many other instruments.
features:
low and high gain fuzz channels with led indicator selectable with left foot switch
uniquely designed circuit
active 3-band eq
voltage starve control
high quality analog signal path
premium parts and components throughout
true bypass with soft touch relay switching
full control over wet/dry mix
expression pedal control over mix
buffered input and output
top mounted audio and power jacks
designed and handmade in b.c., canada
knobs:
bass - adjust the low frequencies
mid - adjust the midrange frequencies
treb - adjust the high frequencies
mix - adjusts the balance between the input signal (dry) and the effect (wet) signal
gain - increases the amount of distortion
volts - lowers the overall headroom. produces glitchy, suboctave sounds at the lowest settings. lower threshold adjustable with internal trim pot.
vol - controls the effect (wet) signal level
gain footswitch - toggles between low- and high-gain channels
bypass - engage or disengage the effect
specifications:
mono input, mono output, trs expression input
treble control: +/-15db 2nd order peaking filter centred at 3khz
mid control: +/-15db 2nd order peaking filter centred at 800hz
bass control: +/-15db 2nd order peaking filter centred at 100hz
exp input: trs cable, 10kΩ to 100k resistance
dimensions: 70mm wide, 129mm long, 59mm tall (2.75" wide, 5.1" long, 2.3" tall)
