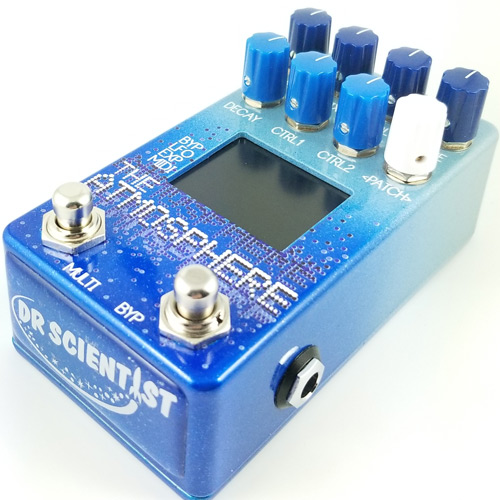

the atmosphere is a compact multi-mode reverberator containing 16 high quality custom dsp reverb algorithms. these include classic favourites like spring, hall, plate as well as more experimental sounds like
aether (reverse), gated, pitch, plus many others. featuring a vibrant 1.8" tft colour screen providing easy access to many in depth functions like: on-board presets, internal lfo system, expression/control
voltage mapping, midi, and more. like all dr. scientist pedals the atmosphere can be used with guitar, bass, synths, and many other instruments. no matter where the weather takes you, the atmosphere won't
leave you high and dry!
features:
16 custom programmed digital effects in 1 small box
16 on-board presets
full midi control over every parameter and access to presets
large colour screen display for easy navigation
multi stomp switch with assignable press and hold functions
powerful internal lfo system with 8 waveforms and tap tempo for unbelievable modulations
expression pedal/control voltage/internal lfo can be mapped to 6 parameters
internal lfo syncs to midi beat clock
momentary infinite decay on every patch
high quality analog signal path
premium parts and components through-out
selectable true bypass or trails bypass with soft touch relay switching
full control over wet/dry mix
24 bit a/d conversion
control over dsp engine clock speed/system resolution
choice of several bypass screen displays to suit your individuality
top mounted audio and power jacks
included power supply, plug and play
designed and built by hand in bc, canada

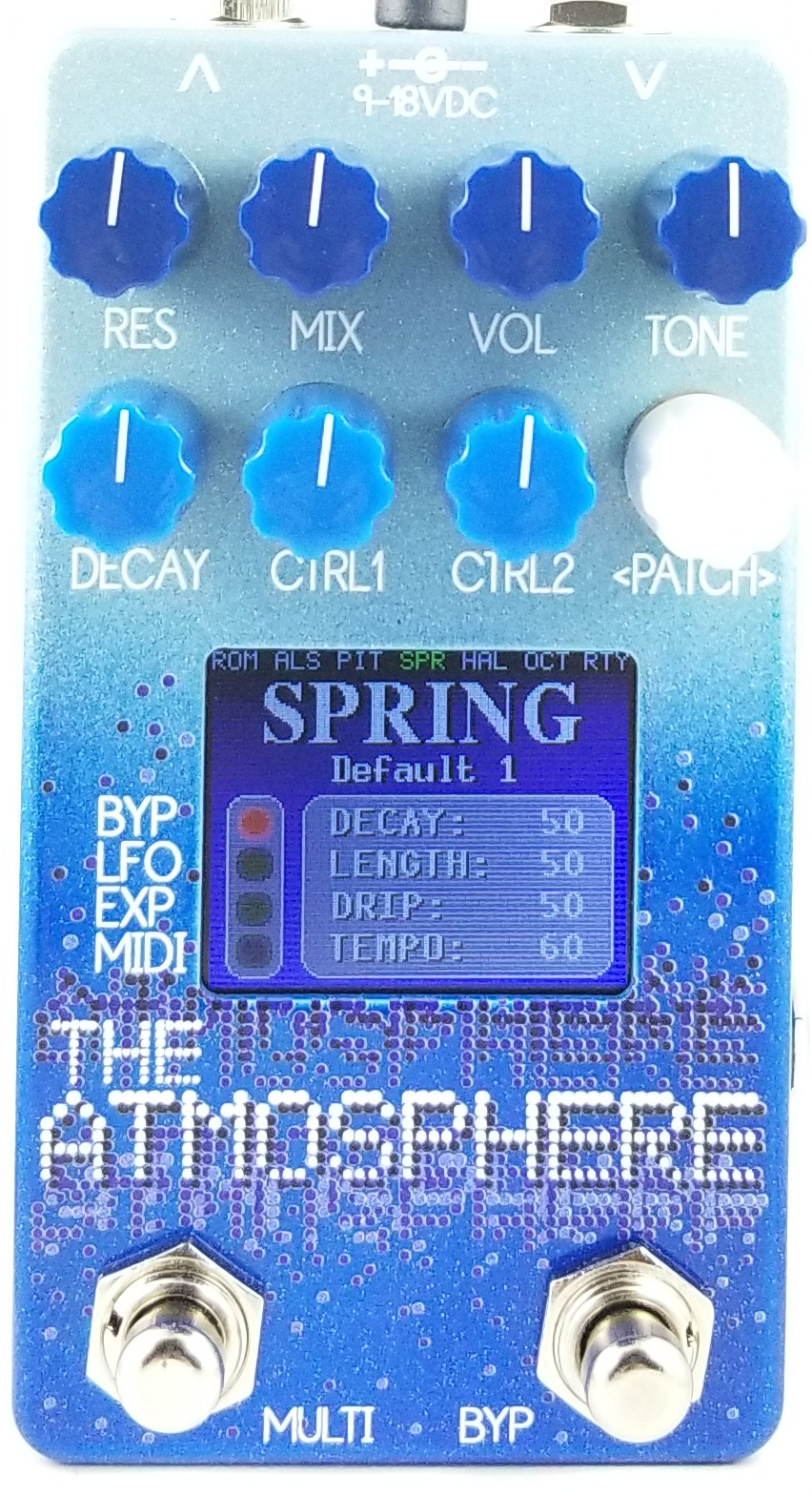

controls:
res - control over dsp engine clock speed/system resolution from 16khz to 33khz affects sample rate, delay times, and effect rates
mix - adjusts the balance between input (dry) and effect (wet) signals
vol - controls the input (dry) and effect (wet) signal levels
tone - cuts or boosts the high frequency content of the effect (wet) signal
decay - controls the time the reverb takes to fade out (displayed on screen)
ctrl1 - controls parameter 1 of the current patch (displayed on screen)
ctrl2 - controls parameter 2 of the current patch (displayed on screen) - rotary encoder: cycles through patches with clockwise or counter-clockwise rotation, also used to manoeuvre through menus
button: press to toggle between default and preset of current patch. hold to save a preset. double click to enter menus. press once to select options within menus
multi - assignable functions for press and hold include: next patch, previous patch, preset/default toggle, infinite decay, tap tempo for lfo, lfo on/off, none enter menu by holding stomp and double clicking button
bypass - engage or disengage the effect, hold to toggle between true bypass and trails bypass
specifications:
mono input, mono output, trs expression input/ts control voltage input
power requirements: 300ma @ 9vdc, 600ma @ 18v, 2.1mm centre negative plug
input/output impedance: 500kΩ/1kΩ
tone control: +/-12db 2nd order peaking filter centred at 3khz
expression input: trs cable, 10kΩ to 100kΩ resistance
midi input: 5 pin din cable
control voltage input: ts cable, 0-5vdc
24 bit a/d converters
dimensions: 70mm wide, 129mm long, 59mm tall (2.75" wide, 5.1" long, 2.3" tall)
