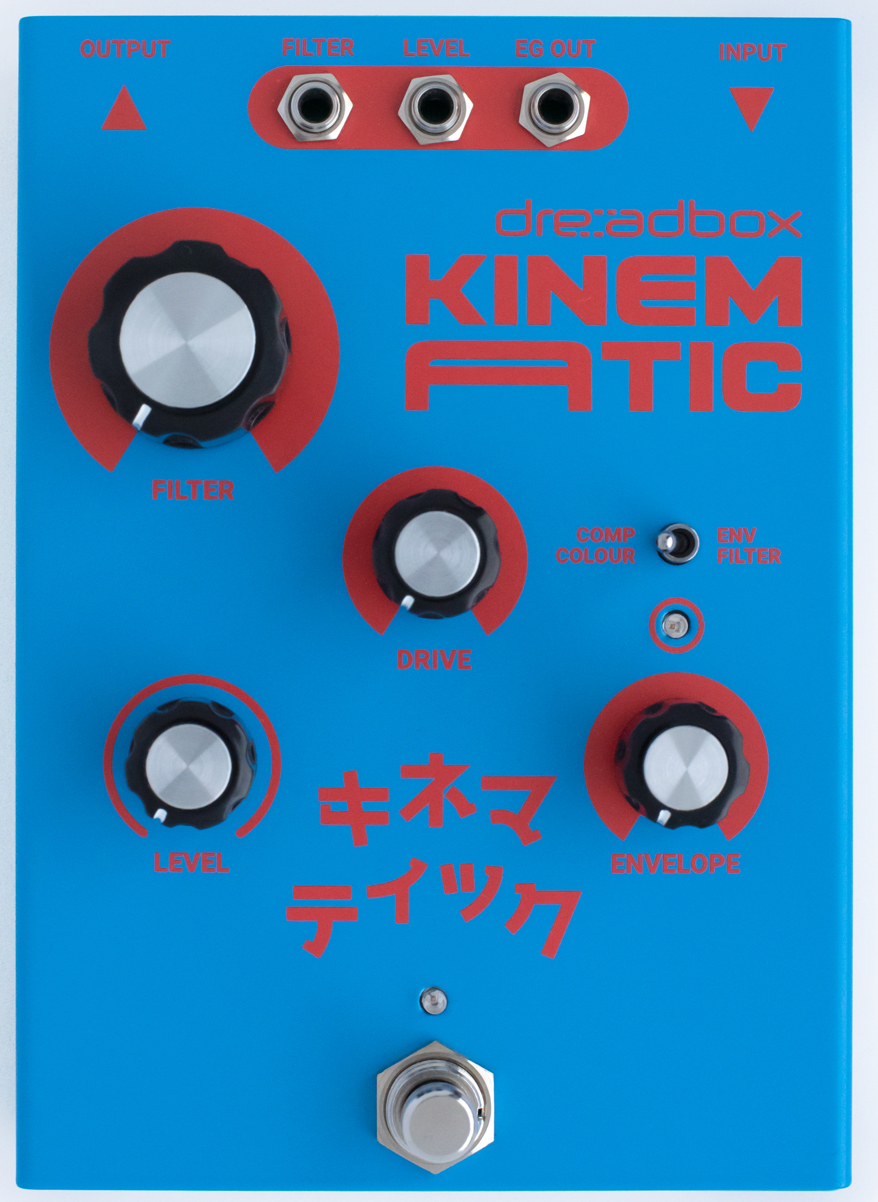

dreadbox kinematic price : $199.00

dreadbox kinematic is a vca based compressor and an envelope filter effect pedal suitable for fretted instruments and synthesizers, with eurorack compatibility.

features:
full analog vca based compressor band boost filter extreme compration ratio

envelope filter low pass filter slow envelope curve

post diode overdrive circuit

level boost up to +18db

true tone maker

3 patch points for our modular fans

specifications:
circuit: analog
bypass: cmos
audio: mono

inputs / outputs
in/out : ts unbalanced 6.4mm jack
filter / level / eg out : 3.5mm mini jack

power supply: 9vdc boss style center pin negative 2.1mm (not included)
dimensions (cm): 14 x 10 x 5.6
current draw: 85ma

download the users manual here.
