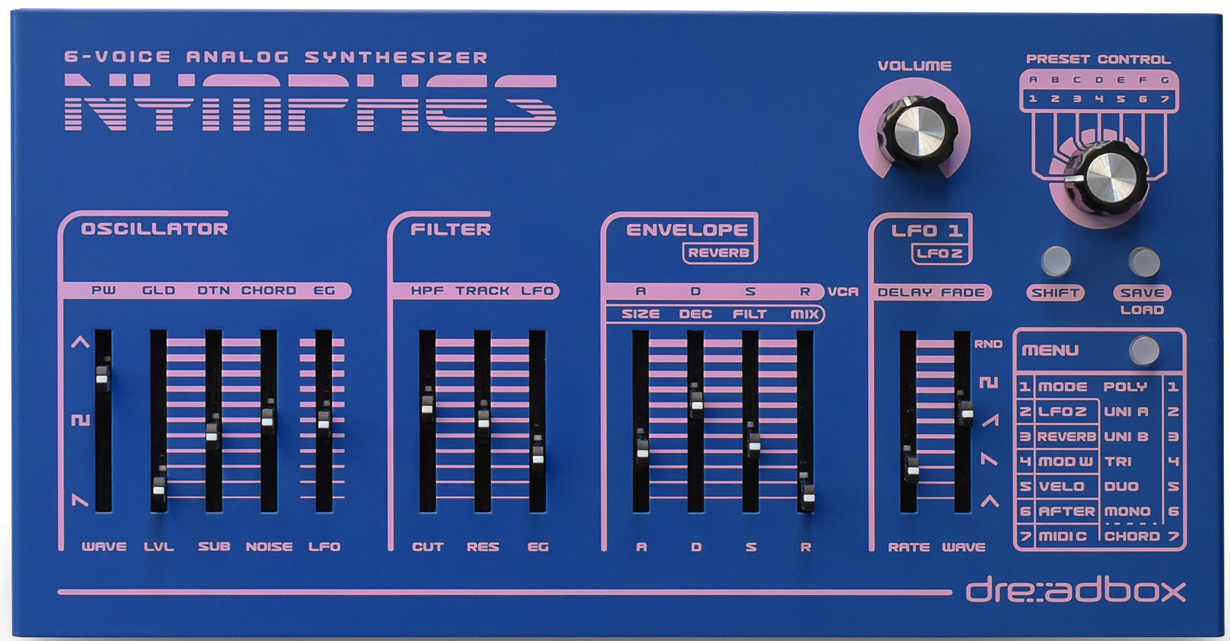

the polyphonic synthesizer n y m p h e s was developed during the obscure pandemic times and we really hope that it will bring a pinch of happiness on your face. we tried to condense an ambitious idea in a small and compact box, without any compromise in
the quality of the final instrument. the result is stunning and ethereal...
features:
all analog synthesizer (except for the reverb)
6 voices polyphon
lush digital reverb (developed by dreadbox)
12 envelopes and 7 lfos (2 envelope/voice, 1 lfo/voice + 1 generic lfo)
6 different playing modes
98 presets memory (49 factory and 49 user)
midi over usb or via din5 with full cc in and out documentation
compact, usb powered for maximum portability
metal enclosure
features per voice:
1x vco with wave forming
1x sub oscillator
noise generator
1x lfo per voice with: key track, fade in and fade out, 5 waveforms and wide frequency (into the fm range)
2x envelope generators
24db/octave low pass resonant filter with accurate tracking
6db/octave high pass non-resonant filter
common voice features:
1x common lfo (named lfo2) that can target any and multiple parameters with different amount to each one at the same time , with: key track, fade in and fade out, 5 waveforms and wide frequency (into the fm range)
7x active chords that you can edit, modulate and store on each preset
modulation wheel, velocity and aftertouch (monophonic) can target any and multiple parameters with different amount to each one at the same time
specifications & connections:
usb powered (1.5 watts)
50 playing hours with 20,000ma portable power bank
midi in via usb or din5
¼ mono ts jack out
⅛ headphones out
dimensions: 24 x 12.5 x 3.8 cm
weight: 0.85 kg
requirements:
usb-a adapter (5v) with 1000ma or more
midi device or keyboard that is equipped with either usb host or din5 midi output
monitor, amp or headphones
included in the box:
usb cable (a to b)
din5 to 3.5mm adapter (specs as found at midi.org)
quick start guide
menu map
