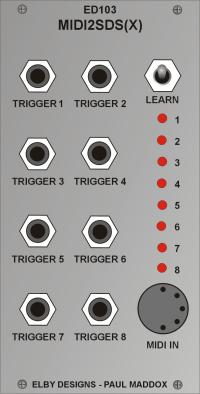

elby designs ed103: midi2sds
price : $215.00
| ![ED103 Midi2SDS ED103 Midi2SDS](ed103s.jpg) |
this re-released version of the midi-2-sds retains the same features as the original version 2 model:
converts midi signals into sds triggers, you can use it to fire other drum machines
the unit has 8 trigger outputs, each of which is velocity sensitive
control of the 'gate' time is via an onboard preset (~1ms to ~132ms),
it has a 'learn' mode, which lets you assign different notes to different triggers
it has 8 leds, so you can see which channel is being triggered and which channel you are 'teaching'.
in addition it includes the following additional features:
adjustable upper and lower trigger output voltages. upper voltage adjustable from 5v to 10v
dipswitch option to invert all trigger pulses (positive-to-negative, typically +5v to 0v)
this module has a maximum current draw of 15ma. it requires 14 hp/te worth of space to fit in a eurorack frame.
|
