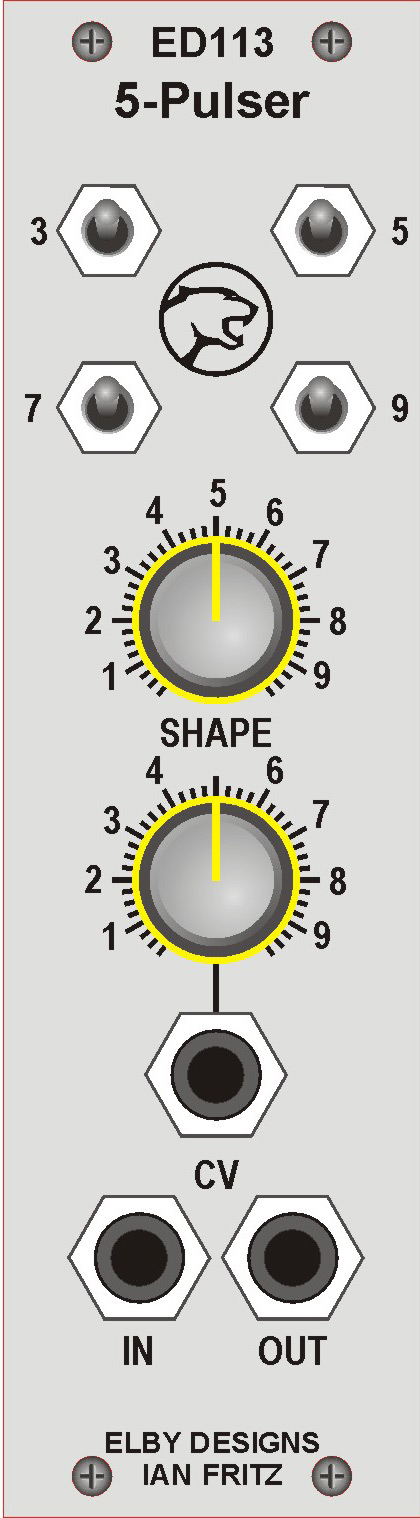

elby designs ed113 5-pulser price : $125.00

the ed113 5-pulser waveshaper produces a train of pulses whose number (and widths) are varied with a control voltage. at the lowest control voltage a single square wave is put out, whereas at the highest voltage a train of 5 pulses spanning less that half of the total wave period is produced.

the panther version of the circuit has been implemented for a ±5 v signal - for use as a general purpose module.

this module has a maximum current draw of 5ma. it requires 7 hp/te worth of space to fit in a eurorack frame.
