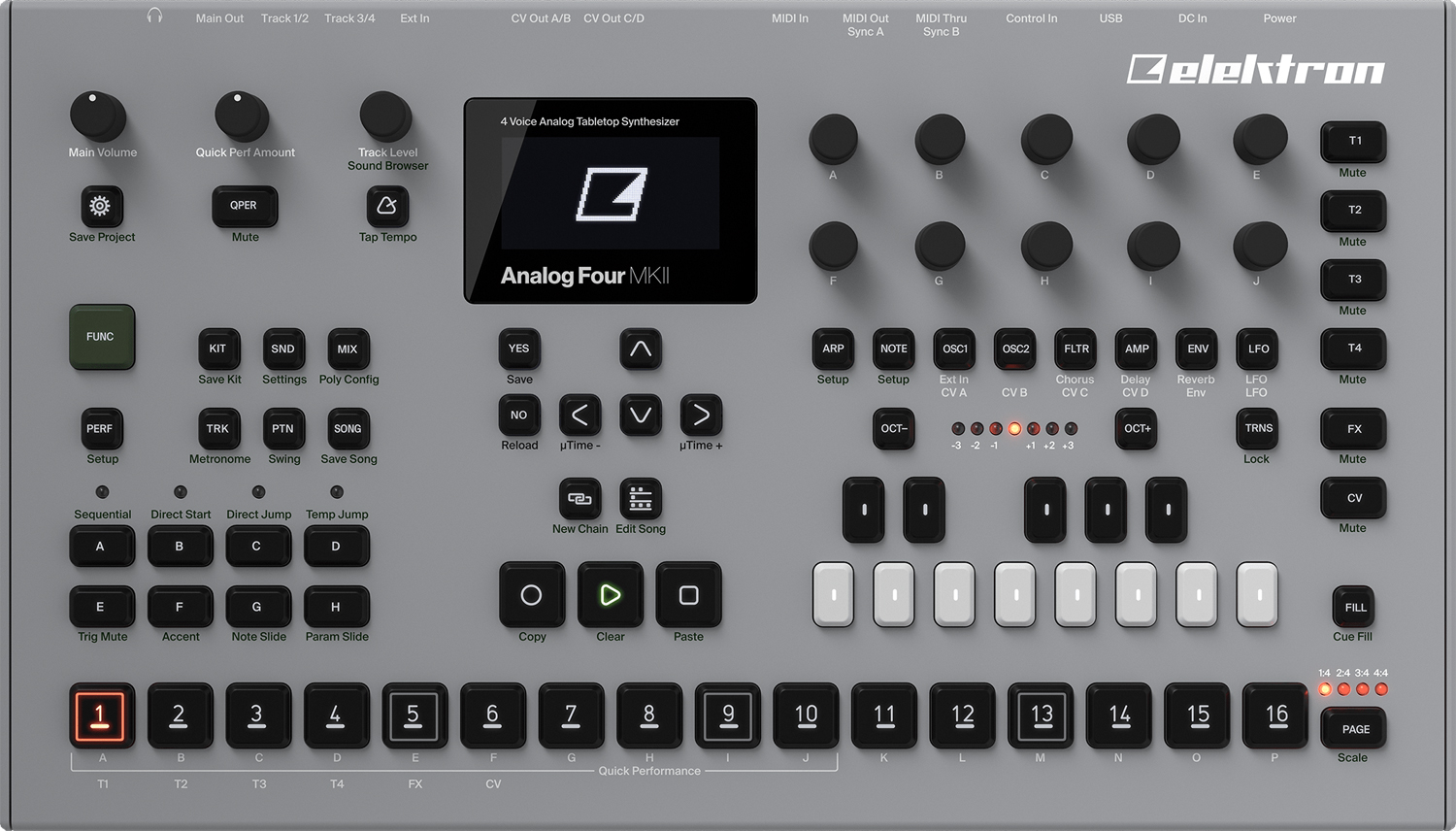

elektron analog four mkii price : $1,349.00

digital mind, analog soul
the analog four mkii represents the best of two worlds. inimitable analog impact combined with razor-sharp digital accuracy. this is an analog synthesizer for the creative artist.

what does the mkii version bring?
analog four mkii is the new benchmark for analog tabletop synthesizers. tweaked circuitry delivering deeper bass than ever, new powerful sound control possibilities, dedicated outputs for each voice. not tomention the ultra durable buttons, the big oled screen and the premium design. no stone has been left unturned.

this is analog four mkii. an analog synthesizer with unmatched sound and flexibility.

analog four mkii features several upgrades compared to the mki version:
reworked analog circuitry delivering very deep and defined bass
enhanced analog overdrive for more bite and growl
crisp, large oled screen providing optimal feedback in dimly lit environments
ultra durable back-lit buttons. rated for 50 million presses
precise, hi-res encoders
quick performance controls
increased amount of dedicated buttons enabling quicker workflow
stereo audio outputs for each voice
expression/cv inputs for external control of analog four mkii parameters
overbridge with higher bandwidth
premium cast aluminium enclosure

analog bliss
organic, warm, chaotic, exact, and everything in between. moulding your own unique analog sounds is simple. program them with precision, or feel free to design as you go. the sonic range is so vast entire tracks can be created from scratch.

from sounds to songs
four synth tracks and an intuitive step sequencer enable you to easily create and layer melodies. then play back your composition and immediately reshape it. change notes, alter sounds, add effects. something beautifully unique will emerge every single time.

modular control
not only a splendid synthesizer, the analog four mkii can also make other gear sing. thanks to the cv/gate and din sync outputs, external analog gear can be controlled in great detail. make any modular or vintage synthesizer rig come truly alive.

specifications:
synth voice features (✕4)
fully analog signal path
2 ✕ analog oscillators
variable waveshape on all waveforms
oscillator am and sync modes
2 ✕ sub-oscillators
1 ✕ noise generator
1 ✕ 4-pole analog lowpass ladder filter
1 ✕ 2-pole analog multi-mode filter
1 ✕ analog overdrive circuit
filter feedback
2 ✕ assignable lfos
1 ✕ dedicated vibrato lfo
2 ✕ dedicated waveshape lfos
1 ✕ amp envelope
2 ✕ assignable envelopes
2 ✕ dedicated lfo fade envelopes
1 ✕ dedicated noise fade envelope
1 ✕ dedicated vibrato envelope
1 ✕ dedicated autobend envelope
3 ✕ individual effect sends

polyphony
up to 4 notes of polyphony
up to 4 part multitimbrality
up to 4 note unison playback

storage
128 projects
4096 sounds (+drive sound library)
128 sounds per project (project sound pool)
128 kits per project
128 patterns per project
16 songs per project

sequencer
4 synth tracks
1 fx track
1 cv/gate track
up to 64 steps per pattern
individual track lengths
6 ✕ arpeggiators
parameter locks
instant pattern, kit and sound reload
live friendly performance mode
swing, slide, accent
track transpose
micro timing
sound-per-step change
full real-time control

send effects
wideshift chorus
saturator delay
supervoid reverb

hardware
128✕64 pixel oled screen
midi in/out/thru with din sync out
2✕¼" impedance balanced main audio out jacks
4✕¼" separate stereo voice output jacks
2✕¼" audio in jacks
1✕¼" stereo headphone jack
4✕¼" cv/gate outputs
2✕¼" cv/expression inputs
48 khz, 24-bit d/a and a/d converters
flash-eeprom upgradable os
electrically isolated usb 2.0 high speed port

balanced audio outputs
headphones out level: +19 dbu (55 Ω)
main outputs level: +19 dbu
output impedance: 440 Ω unbalanced

unbalanced audio inputs
input level: +19 dbu maximum
audio input impedance: 9 kΩ

cv/expression inputs
input voltage on tip: -5 v-+5 v. supplies +5 v on ring
accepts cv, expression pedals

cv outputs
voltage range: -10 v-+10 v.
digital s/n ratio: 102 dbfs (20-20.000 hz)

electrical specifications
unit power consumption: 15 w typical, 20 w maximum.
recommended power supply: 12 v dc, 2 a

physical specifications
aluminum enclosure
dimensions: w385✕d225✕h82 mm (15.2✕8.85✕ 3.3") including knobs, jacks and feet
weight: approximately 2.4 kg (5.3 lbs)

miscellaneous
3 year elektron warranty

included in the box
power supply psu-3b
elektron usb cable
quick guide
