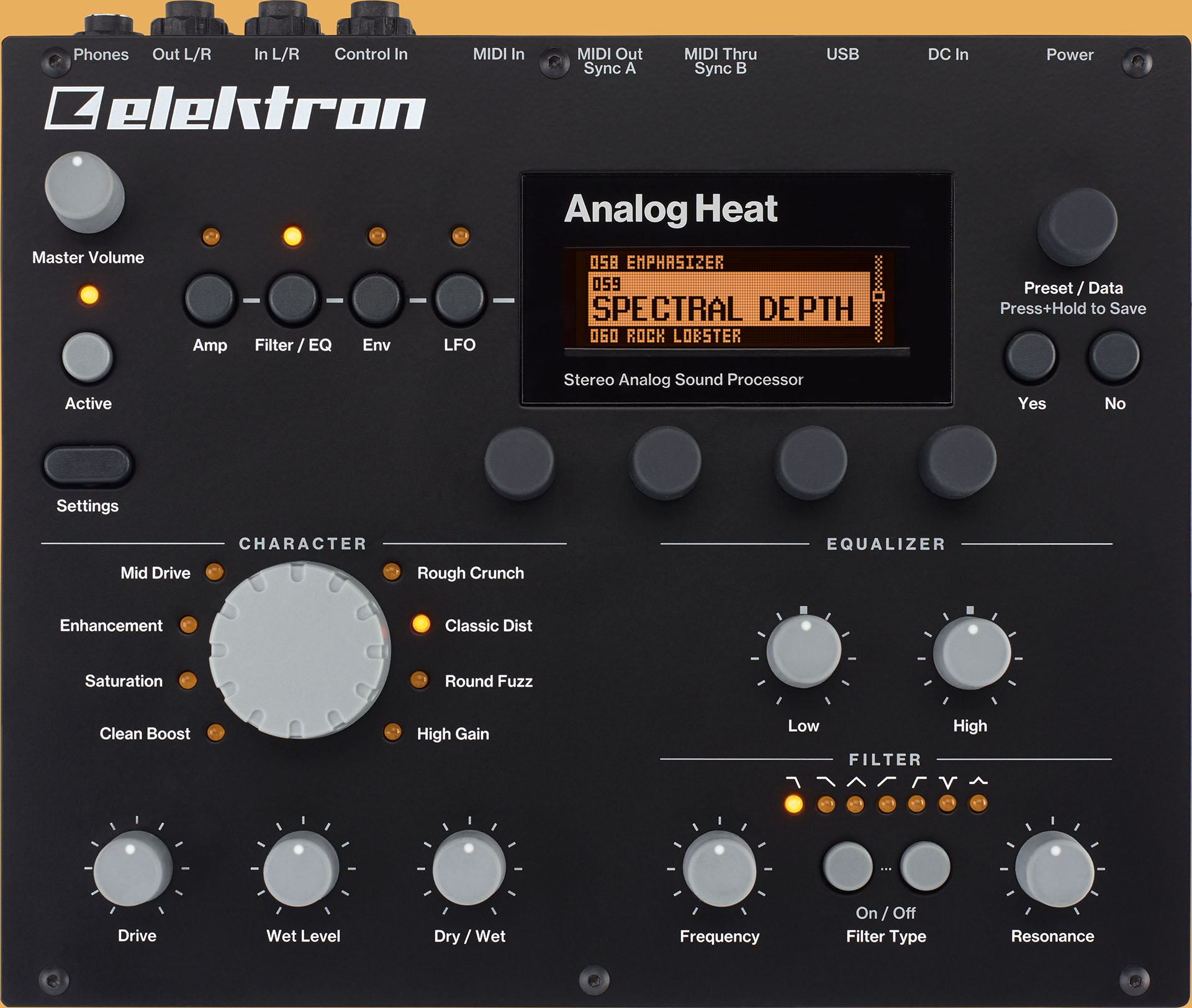

elektron analog heat price : $650.00

audio enhancer. audio destroyer.

add sparkly brilliance, or grimy roughness, to any sound source. samplers, drum machines, synths, the master bus, you name it. analog heat is a fiery furnace destined to make your music glow.

sound better
take a sound, any sound. send it through the analog heat, try out the eight different stereo analog distortion circuits, add stereo analog filtering and eq, and hear beautiful things unfold. new life foryour existing gear.

plugin control
overbridge essentially allows your analog heat to be used as a vst/au effect plugin. connect the analog heat to your computer and conveniently smooth out the edges of all digital sounds. incredibly usefulfor bringing your mixes to life.

sound card operation
one of the most prominent analog heat features: it can function as a 2 in/2 out sound card, even while processing daw audio. perfect for the traveling musician. create as you go and make stellar, highquality recordings wherever you may roam.

specifications:
sound processing
8 × stereo analog distortion circuits
1 × stereo analog multi-mode filter (7 filter types)
1 × 2 band adaptable stereo analog eq
1 × assignable envelope generator/envelope follower
1 × assignable lfo

storage
128 user preset slots

hardware
122×32 pixel backlit lcd
midi in/out/thru with din sync out
2 × ¼" balanced audio out jacks
2 × ¼" balanced audio in jacks
1 × ¼" stereo headphones jack
2 × ¼" cv/expression pedal input jacks
48 khz, 24-bit d/a and a/d converters
flash-eeprom upgradable os
hi-speed usb 2.0 port

audio outputs
headphones out level: +22 dbu peak
headphones output impedance: 55 ω
impedance balanced main outputs level: +22 dbu peak
main outputs impedance: 440 ω unbalanced
sound card s/n ratio: 111 dbfs (20-20,000 hz)

audio inputs
balanced audio input level: +22 dbu peak
audio input impedance: 39 kω
sound card s/n ratio: 112 dbfs (20-20,000 hz)

control inputs
input level: -5 v - +5 v
accepts cv, expression pedals, foot switches

physical specifications
sturdy steel casing
dimensions: w215×d184×h63 mm (8.5×7.2×2.5") (including audio outputs, knobs and rubber feet)
weight: approximately 1.5 kg (3.3 lbs)

miscellaneous
overbridge enabled
ableton live 9 lite license included
3 year elektron warranty
