elektron
analog rytm mkii

price : $1,999.00

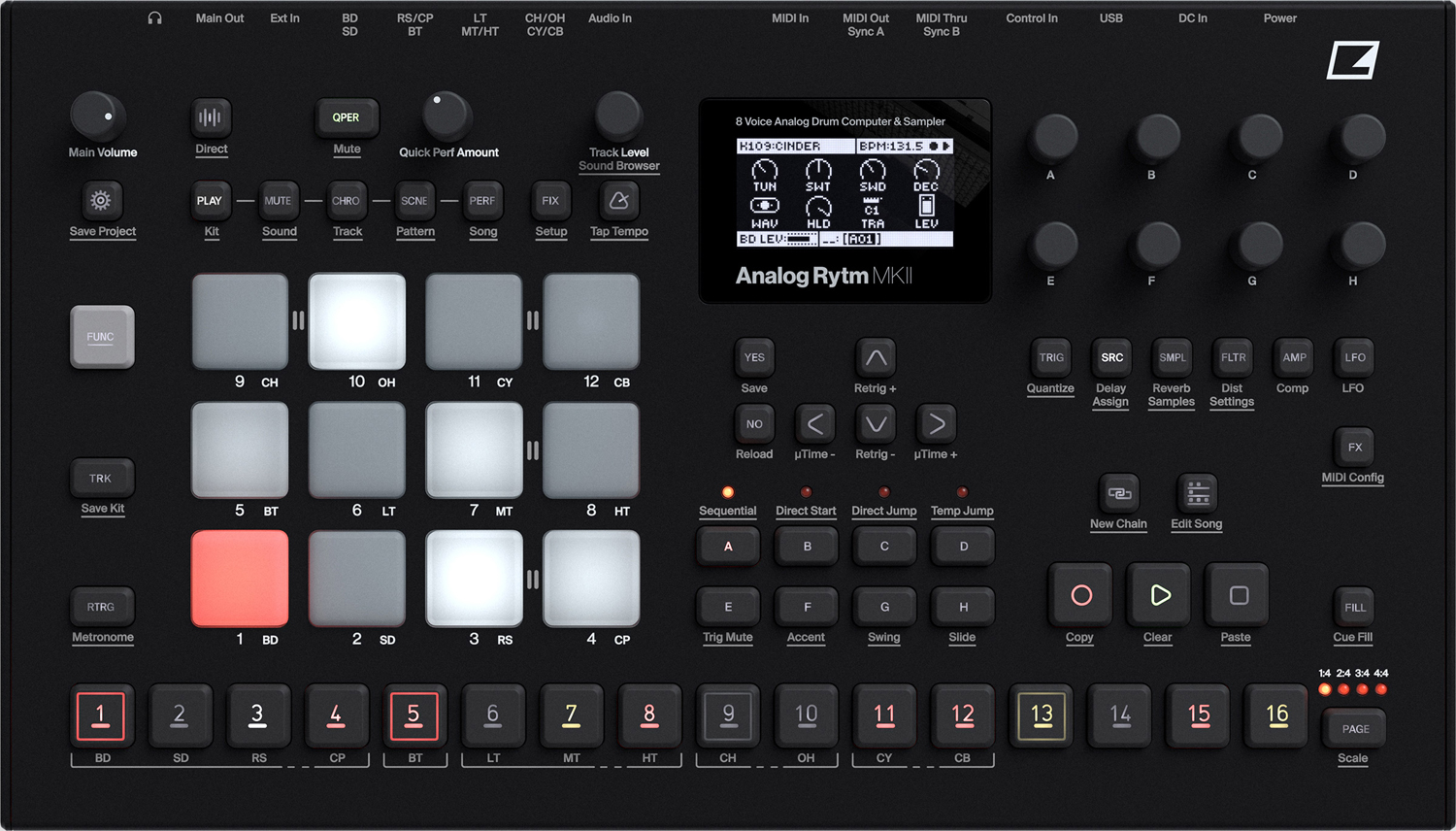

Analog Rytm MKII

a different drum
fuse distinctive analog percussion with samples. bring in the power of sequencing and performance controls. the analog rytm mkii is a one stop solution beat machine.

what does the mkii version bring?
analog rytm mkii is an analog/digital beat making dream machine. everything - from the state of the art aluminium enclosure, via the large pads, to the new quick performance controls - is a direct result of the quest for rhythmical excellence. and now you can sample with it too. analog rytm mkii features several upgrades compared to the mki version:
sampling capability
crisp, large oled screen providing optimal feedback in dimly lit environments
ultra durable back-lit buttons rated for 50 million presses
precise, hi-res encoders
quick performance controls
large pads for maximum playability
increased amount of dedicated buttons enabling quicker workflow
expression/cv inputs for external control of analog rytm mkii parameters
balanced sampling inputs
overbridge with higher bandwidth
premium cast aluminium enclosure

true analog punch
what really sets the analog rytm mkii apart is the analog sound. it has a magic character. the depth of the kick drums, the bite of the snare drums, those cavernous toms, the airy shimmer of the hihats.fine-tune the sounds to your liking and get working.

elevated by samples
for ultimate creative versatility you can layer samples on top of the analog drum sounds. capture your own sounds, or use pre-recorded material, to make your beats as smooth, as rough, as realistic or asfantastic as you'd like. the perfect unity of analog percussion and sampling simply goes beyond.

maximized playability
when you've got your drums ready, record them to the sequencer and play them back. do it using the pads, or perform detailed programming on the sequencer steps. really meticulous or totally spontaneous: it'sup to you.

specifications:
drum voice features (✕8)
fully analog signal path
1 ✕ specialized analog percussion sound generator
1 ✕ sample playback engine
1 ✕ analog overdrive circuit
1 ✕ 2-pole analog multi-mode filter
1 ✕ panning vca pair
1 ✕ filter envelope
1 ✕ amp envelope
2 ✕ individual effect sends
1 ✕ assignable lfo
1 ✕ dedicated lfo fade envelope

storage
128 projects (+drive)
128 kits per project
128 patterns per project
16 songs per project
4096 sounds (+drive sound library)
128 sounds per project
127 samples per project
1 gb +drive sample storage

sequencer
12 drum tracks
1 fx track
up to 64 steps per pattern
individual track lengths
parameter locks
instant pattern, kit and sound reload
live friendly performance mode
trig mute, swing, slide, accent functions
track transpose
trig conditions
micro timing
chromatic mode
scene mode
sample-per-step change
sound-per-step change
assignable retrig
full real-time control

send effects
delay
reverb

master effects
analog stereo distortion
analog stereo compressor

hardware
12 large, velocity, pressure sensitive, and backlit pads
128 ✕ 64 pixel oled screen
midi in/out/thru with din sync out
2 x ¼" impedance balanced audio out jacks
1 x ¼" stereo headphone jack
8 x ¼" impedance balanced individual track output jacks
2 ✕ ¼" balanced audio in jacks
2 ✕ ¼" ext in jacks
2 ✕ ¼" cv/expression inputs
48 khz, 24-bit d/a, and a/d converters
flash-eeprom upgradable os
electrically isolated usb 2.0 high speed port

balanced audio outputs
headphones out level: +15 dbu (55 Ω)
main outputs level: +15 dbu
individual outputs level: +15 dbu
output impedance: 440 Ω unbalanced

unbalanced external inputs
input level: +15 dbu maximum
audio input impedance: 9 kΩ

balanced audio inputs
input level: +15 dbu maximum
audio input impedance: 19 kΩ
digital s/n ratio: 110 db (20-20,000 hz)

cv/expression inputs
input voltage on tip: -5 v-+5 v. supplies +5 v on ring
accepts cv, expression pedals

electrical specifications
unit power consumption: 14 w typical, 20 w maximum.
recommended power supply: 12 v dc, 2a

physical specifications
aluminum enclosure
dimensions: w385✕d225✕h82 mm (15.2✕8.85✕ 3.3") including knobs, jacks and feet
weight: approximately 2.4 kg (5.3 lbs)

miscellaneous
3 year elektron warranty

included in the box
power supply psu-3b
elektron usb cable
quick guide
