endorphin.es
shuttle system: black
price : $2,665.00
|
![Shuttle System: Black Shuttle System: Black](shuttlesystems.jpg)
|
shuttle system: gold
price : $2,665.00
|
![Shuttle System: Gold Shuttle System: Gold](golds.jpg)
|

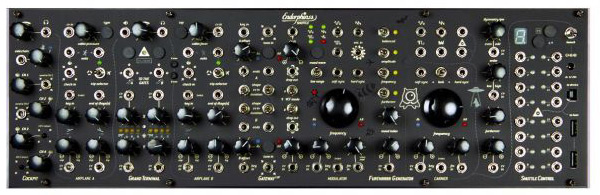

the endorphin.es shuttle is a unique performance instrument containing 5 eurorack modules in one single 84hp faceplate
shuttle control (sc)-16 channel usb->midi->cv interface with almost infinite possibilities interpreting midi events into analogue control voltages-including cv/gate, random or noise generators, midi or
tap-clocks, utility lfos and envelopes
furthrrrrr generator (fg)-dual triangle-core vco with a waveshaper
grand terminal (gt)-dual voltage controlled gate with 8 resonant filter modes (ladder, diode, lpg, state variable, comb-dual envelope generators (voltage controlled) with looping/ad/asr with arbitrary voltage
to control slope shapes: from exp to lin to log without stretching the length of a certain slope (gt)-cabin pressure audio fx processor with 8 selected effects (gt)
cockpit (cp)-4 stereo channel mixer with sidechain ducking
gateway (gw)-dual 1+1 utility mixer and auto-tuners to scale, offset and invert voltages
download the quickstart guide here.
|
