endorphin.es
terminal
price : $560.00
|

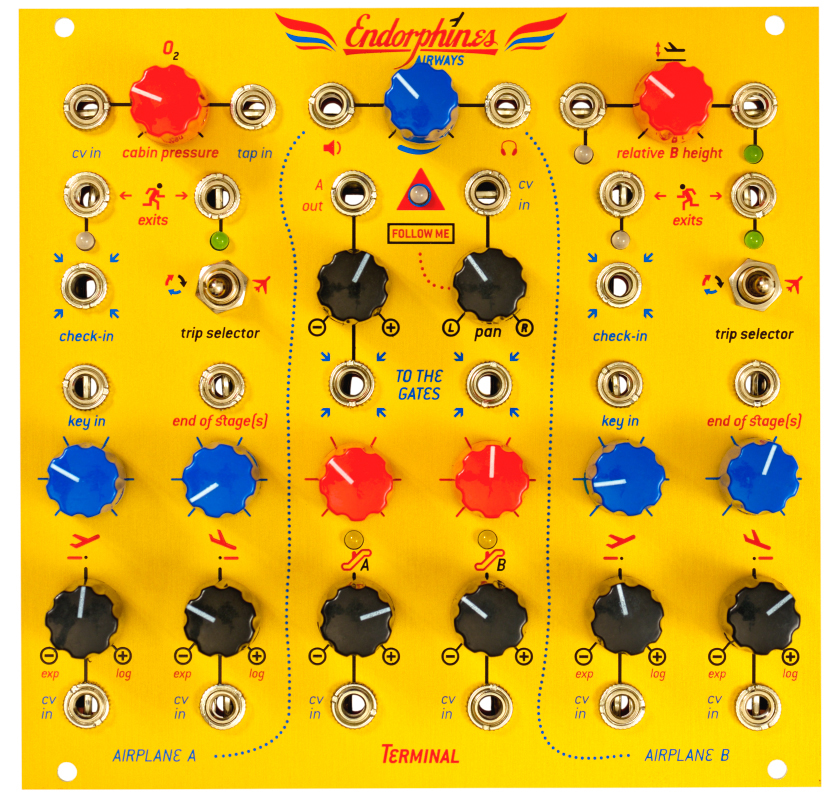

![](terminals.jpg)
|
terminal combines a loopable dual ad envelope with a low pass gate and a digital reverb/ech unit one module.
sections airplane a and b feature two identical, voltage controlled function generators with ad/ar/loop modes. in "cruise mode" ad-envelopes can be repeated as long as a gate signal is fed, in "loop" mode
the section can be used as a lfo. via the check-in trigger input the cycle can be stopped, e.g. for a reset.
the section gate/gateways is a vactrol based low pass gate. filter and gate function independently of signal levels. due to vactrol-based design the gate reacts slower with a slight decay, useful for the
well-known buchla-bongo sound. gateways controls the output with panorama control. before that the signal is sent through the cabin pressure section.
the reverb/echo effect works with 12 bit and variable sample rate which can be controlled via cv.
technical details
width: 26hp
connections:
per airplane a / b:
check-in input
2x exit outputs
key input
end of stage output
2x cv inputs
gates / gateways:
2x input
2x cv input
pan cv input
a out output
phones output
reverb:
cv input
tap input
download the manual here.
|
