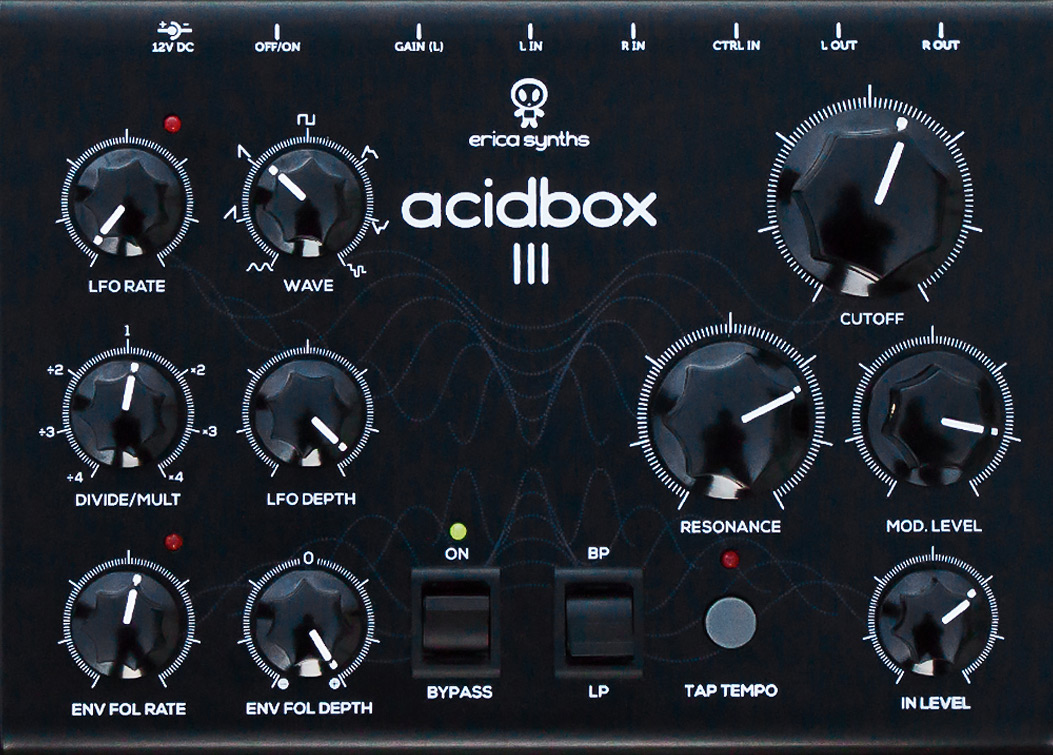

erica synths acidbox iii brings you the core of the famous polivoks vcf in stereo version with a unique audio signal overdrive circuit, built in lfo and envelope follower in a compact, full aluminium case.
the acidbox iii has adjustable input gain, therefore it works with various sound sources - guitars, units with line level signals (synthesizers, grooveboxes, etc.) and modular synths. configurable control
input allows you to connect a bypass footswitch, expression pedal, external cutoff control voltage source and lfo synchronization trigger. this makes the acidbox an ideal companion in almost every production
or live performance setup.
features:
polivoks core stereo lowpass/bandpass vcf with the original programmable opamps
unique audio overdrive circuit
versatile syncable lfo with 8 waveforms
tap tempo button
envelope follower with modulation level attenuverter
master modulation control
manual and cv control over cutoff frequency
configurable control input for footswitch, expression pedal and external lfo/cutoff control
adjustable input gain
specifications:
input signal level: up to 20v ptp
input signal amplification: up to +20db
modulation cv level: up to 20vptp
lfo synchronization trigger level: 0-+5v
power supply: universal mains adapter: 110-220v
mass: 0,7kg
dimensions: 185x140x55mm
