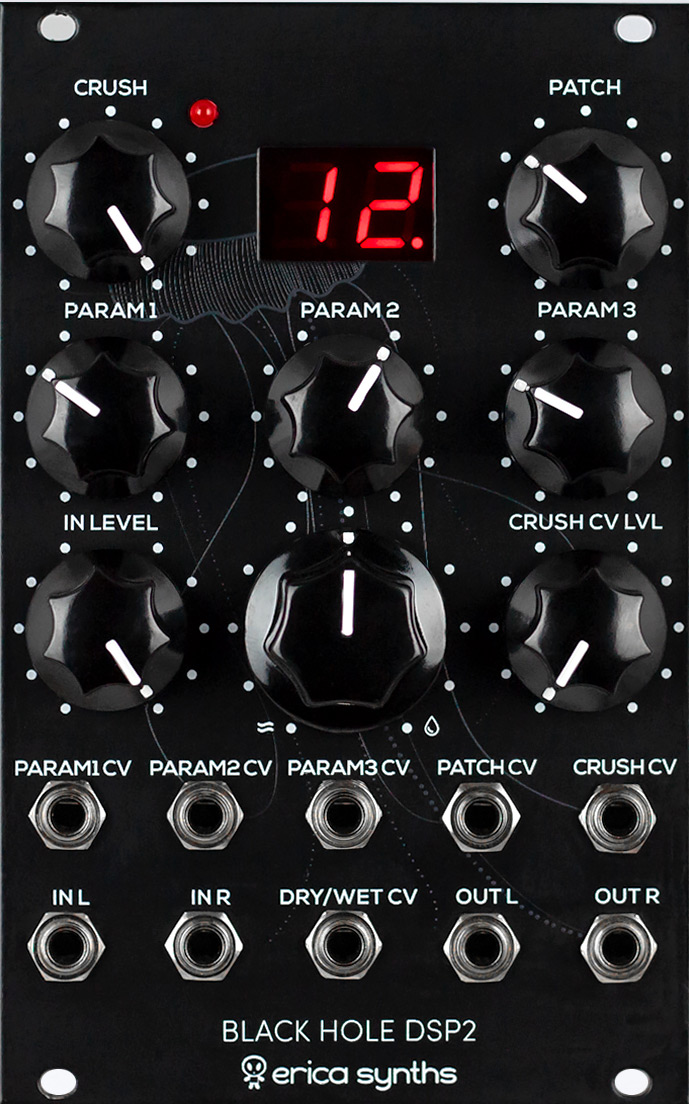

erica synths black hole dsp 2, an updated version of black hole dsp features 24 custom effects, designed in close co-operation of erica synths team rider kodek and creator of spincad software gary worsham.
each effect has 3 manually and cv controllable parameters, manual and cv control over sampling frequency for spanning from 48khz to really lo-fi crunchy sound and full analogue dry/wet control. all effect
parameter settings can be saved to the memory and instantly recalled with the effect, which makes black hole dsp ii ideal for live performances.
features:
24 custom fv-1 effects
stereo ins and outs
3 manually and cv controllable parameters
cv controlled effect selection
manually and cv controllable dsp cpu clock rate
effect settings memory
full analogue dry/wet control
clipping led
technical specifications:
input signal amplitude: -5...+5v (or 0...+10v)
output signal amplitude: -10v - +10v
max sampling rate: 48khz
cv level (full span): -5v - +5v
power consumption: +70ma, -56ma
module width: 16hp
module depth: 35mm
