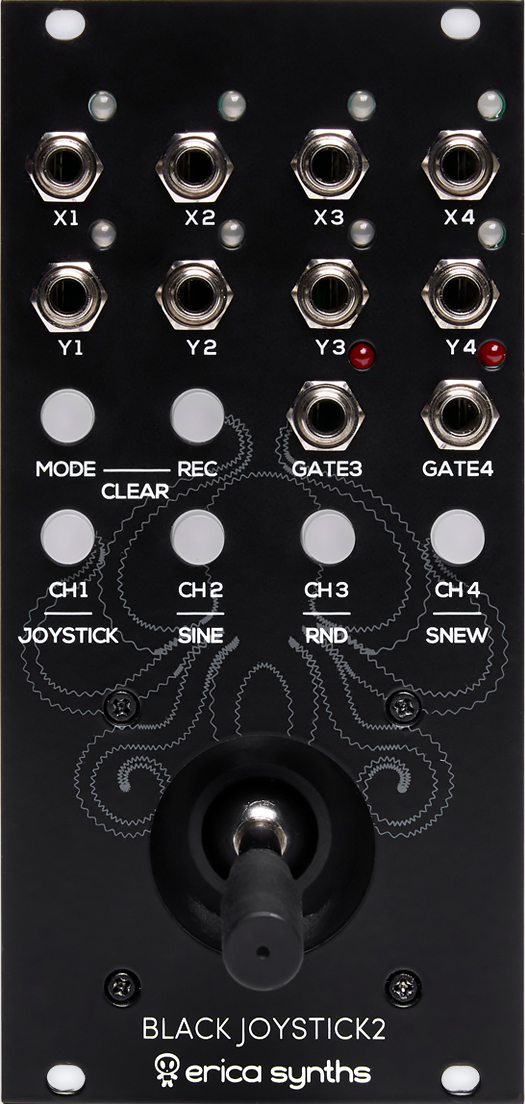

erica synths black joystick2 is 4 channel (2 axis on each channel) multi functional cv and sound source - joystick, movement recorder, distinct lfo and drone/noise oscillator. it provides great interaction with the modular system and allows to develop
unconventional modulation patterns easily.
features:
8 simultaneous cv outputs
2 gate outputs
4 motion record channels
sine and random lfos with adjustable frequency and amplitude
drone/noise oscillator
gate record
two 4-position cv panners
skiff friendly design
an octopus
specifications:
cv output amplitude: -5v - +5v
lfo frequency range: 0.1hz - 5hz
drone oscillator frequency range: 50hz - 1khz
max motion record time: 8" per channel
panel width: 12hp
module depth: 30mm
power consumption: 71ma@+12v, 20ma@-12v
