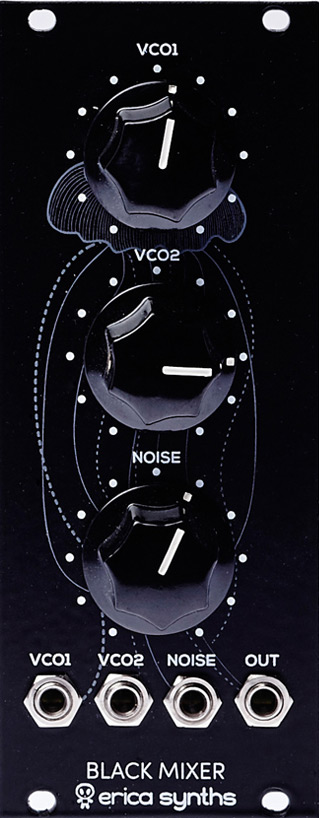

erica synths black mixer price : $95.00

high quality audio mixer with three independently buffered inputs. this eliminates even the slightest interference between the signals before mixing.

erica black series are high-end modules with unique functionality. only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. when designing the black series, we did not economise on the module width, we put design and usability first. big knobs are assigned to functions that make difference in sound. the erica black series are a range of modules that together make an entire synthesizer.



features:
three independently buffered inputs
no signal interference between channels
high quality audio potentiometers
inputs/output are protected against over-voltage
diode protection on reversed power supply

specifications:
max input level: -10v - +10v
mixer gain: 1
power consumption: +8ma, -8ma
module width: 10hp
module depth: 25mm

download the manual here.
