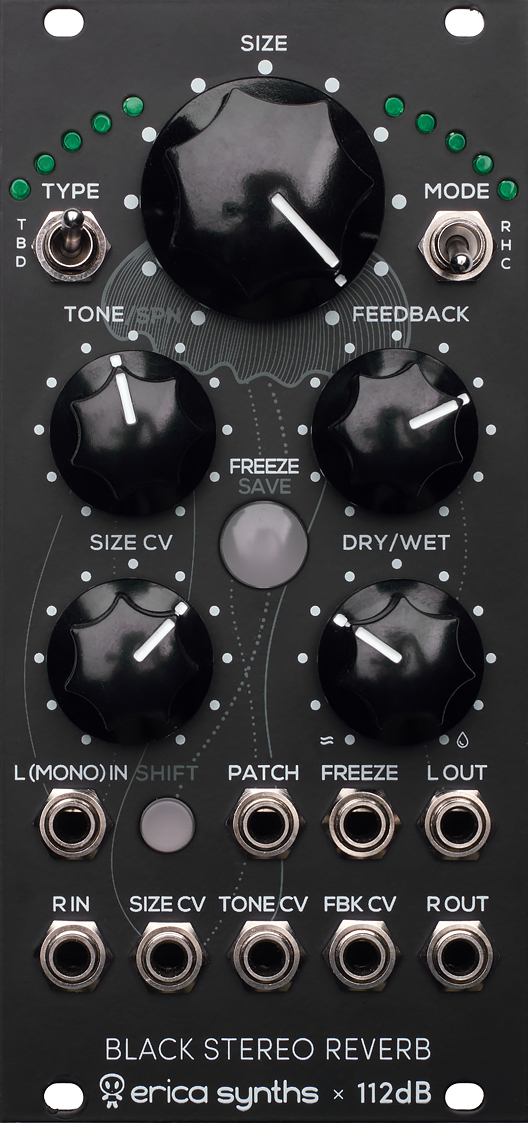

the erica synths black reverb is a versatile hi-fi stereo fx module with lots of unique features based on our custom dsp engine. the reverb sources are selectable tape, bbd and "dirty bbd"; emulations with three modes, each - room, hall and cathedral. delicate
room size control, feedback, tone and stereo spin controls allow for designing extremely delicate reverberation effects. cv control over various parameters and the ability to save up to 10 presets will make this module an integral part of any performance
rack.
the modules run on new erica synths dsp hardware and the effects are developed in collaboration with dutch company 112db who make some of the most beautiful sounding effects.
erica black series include high-end, unique functionality and superior quality modules. only the best, highest-quality components are used, all inputs and outputs are protected against undesired overvoltage. erica black series consist of range of modules that are
needed to put together entire synth.
features:
reverb based on tape, bbd and digital delay lines
three room sizes
manual and triggered freeze
10 preset patches
cv control over size, feedback, tone and preset selection
adjustable stereo spin
specifications:
max audio input level before clipping: 16vptp
cv input range (full span): -5v - +5v
sampling frequency: 48khz, 24bit
audio codecs: -108 dynamic range, -98db thd+n
power consumption: 120ma@+12v, 39ma@-12v
module width: 12hp
module depth: 35mm
