erica synths black vca price : $180.00

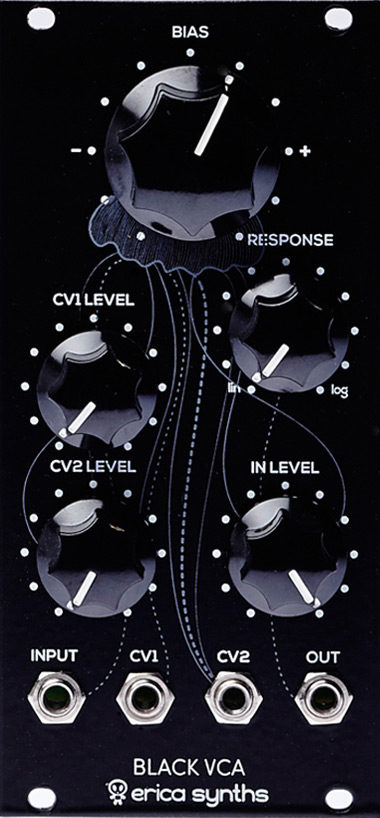

the erica synths black voltage controlled amplifier is a uniquely designed hi-fi vca. black vca has improved attenuation levels, excellent cv reject in audio circuit and cv bias control for great tremolo effects. moreover smooth fading between linear and logarithnic response modes has been implemented.

erica black series are high-end modules with unique functionality. only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. when designing the black series, we did not economise on the module width, we put design and usability first. big knobs are assigned to functions that make difference in sound. the erica black series are a range of modules that together make an entire synthesizer.



features:
adjustable vca bias
smooth fading between linear and logarithmical response
inputs/outputs are protected against over-voltage
diode protection on reversed power supply

specifications:
cv level: -10v - +10v

attenuation level:
cv = 0v (max attenuation): 80db
cv = +10v (unity gain): 0db
response: lin/log
power consumption: +38ma, -32ma
module width: 12hp
module depth: 25mm

download the manual here.
