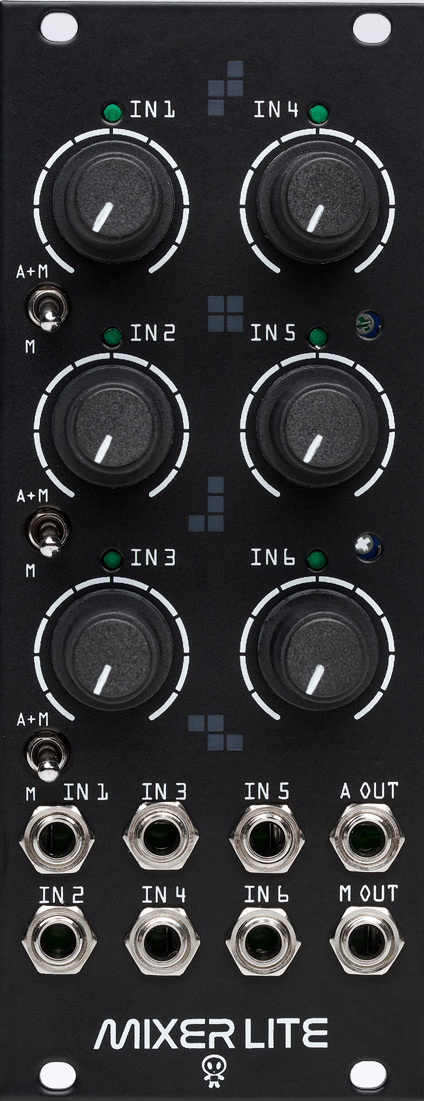

erica synths drum mixer lite price : $175.00

erica synths drum mixer lite is compact version of drum mixer. it features extended headroom and a dedicated drum compressor of unique design keeps each drum sound clearly distinguishable and add power to the final mix. bonus feature - effects send output allows to apply external effects to the signals on the first three inputs. leds next to each input give visual feedback on the signal level.

features:
6 inputs
built in vactrol based drum compressor with amount and decay control
three inputs assignable to main or aux send outputs
main and aux send outputs
signal level indicator leds

specifications:
mixer gain: ±6db
power consumption: 59ma@+12v, 36ma@-12v
module width: 10hp
module depth: 35 mm

download the user manual here.
