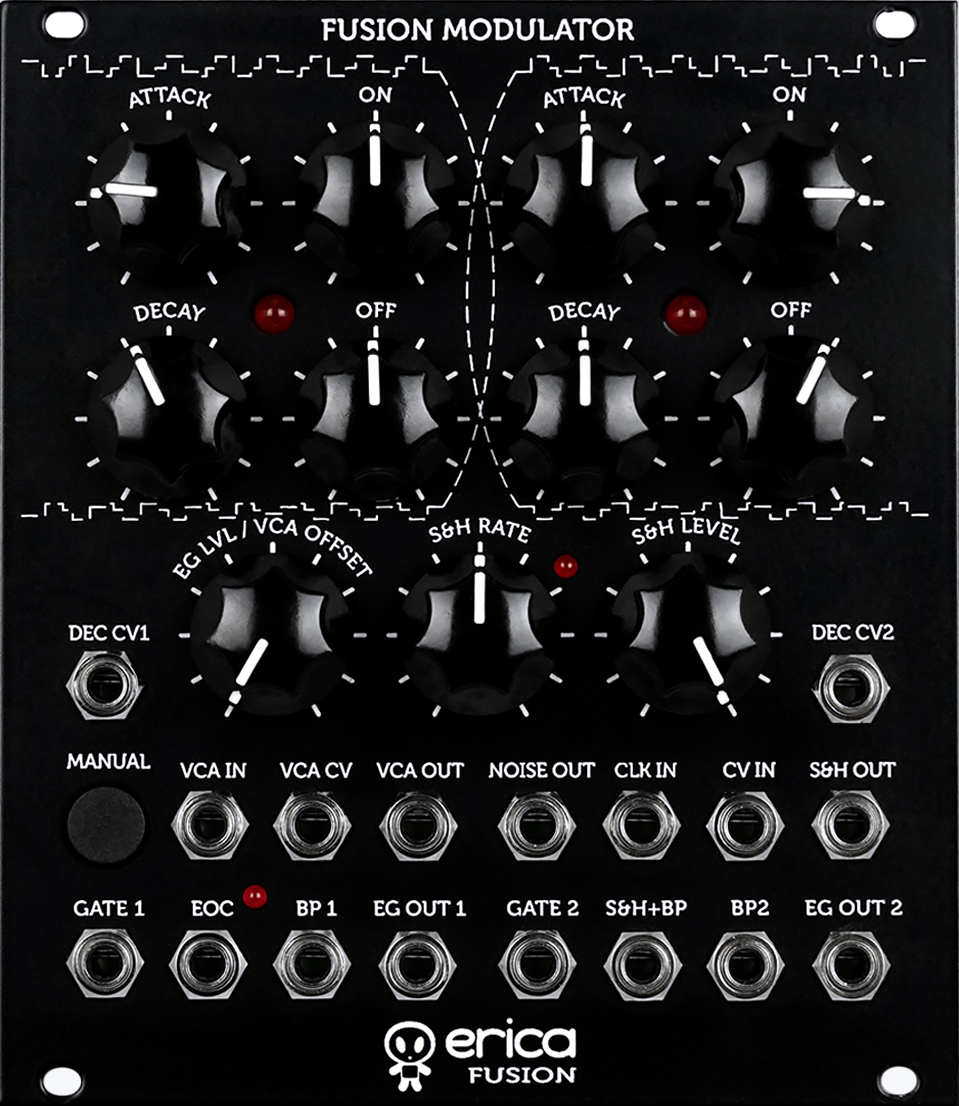

erica synths fusion modulator price : $379.00

fusion modulator is complex, all analogue modulation source with lots of distinct features. it consists of several blocks - two ems synthi functionality inspired looping envelope generators with simultaneous unipolar (0v-10v) and bipolar (-5v-+5v), vca, noise generator and sample&hold. this makes fusion modulator a versatile modulation source for advanced modular setups, especially drone music oriented ones. set lopping envelope generators to high frequencies and have two sub bass sound sources, use vca to control the amplitude of the envelope signal, modulate the decay time by random voltages from s&h circuit and get ever evolving sonic awesomeness!

features:
full analogue design
two looping envelope generators with attack, on, decay and off time control
cv control over decay time
simultaneous unipolar (0v-10v) and bipolar (-5v - +5v) envelope outputs
manual trigger button
end of cycle output
vca with the offset control
zener diode based white noise source
sample&hold circuit with internal and external clock source

technical specifications:
attack time 6ms - 850ms
on time 0-1,5s
decay time 16ms - 2s
off time 14ms - 1,3s
sustain level +10v
panel width 22hp
module depth: 36mm
power consumption 125ma@+12v, 74ma@-12v

download the manual here.
