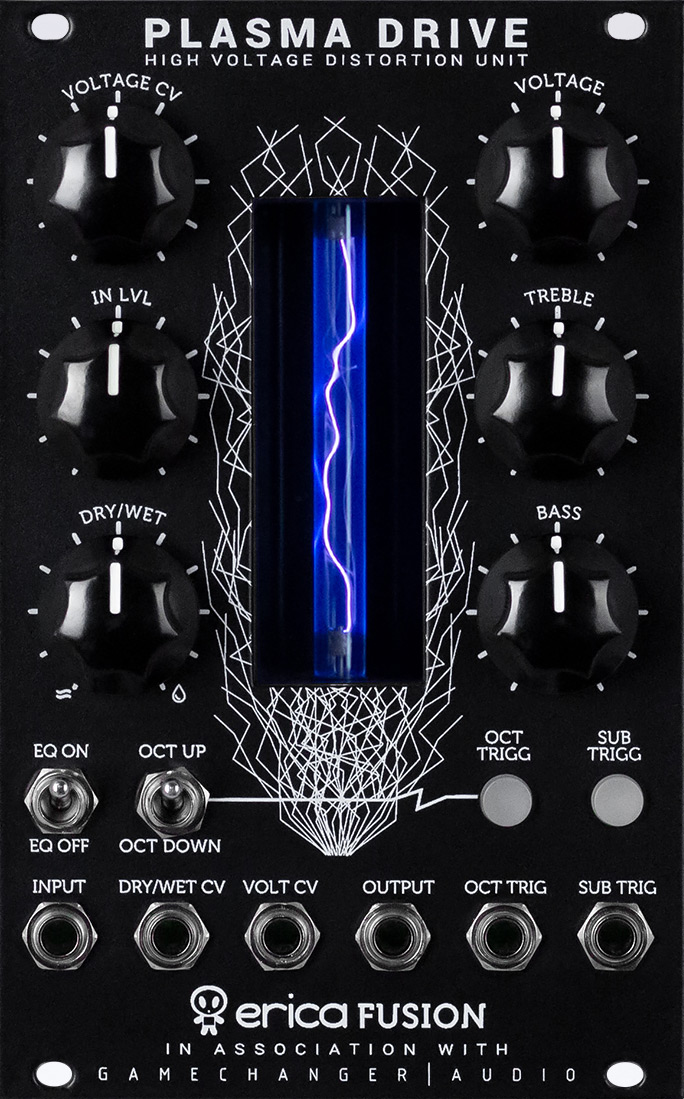

plasma drive is the erica fusion series module developed in collaboration with gamechanger audio.
gamechanger audio is latvian company committed to exploring the uncharted territories of music electronics and creating devices that provide real
value while stretching the imagination of both musicians and engineers. in their plasma pedal they managed to combine tesla coil with a lots of rock and roll and the result is one of the worlds heaviest sounds
with plenty of unique features and the potential to become the new standard of distortion.
similar as plasma pedal, plasma drive gives you a new and previously unexplored method of achieving signal clipping. instead of using led circuits, transistors or vacuum tubes to produce overdrive, the plasma
drive boosts audio signal to 3000v and transforms it into a series of continuous high-voltage discharges in a xenon-filled tube. in essence - you are playing a lightning bolt of electricity, and the electrical
discharges produced by your instrument are instantly converted back into an analogue audio signal, producing a quick, responsive, and extremely heavy distortion with tons of unique character!
the eurorack module plasma drive brings sounds of the plasma pedal to the next level. as per eurorack standards we added cv control over distortion level and dry/wet mix, as well as octave up and 1 and 2
octaves down tracking oscillators that add even more harmonics to the original signal. tracking oscillators can be switched on/off manually or via trigger signals. the plasma drive module is powered via
conventional eurorack psu ribbon cable and the power consumption is around 150ma.
features:
unique distortion flavor
cv control over distortion and dry/wet mix
assignable equalizer (pre- and post effect)
1 octave up & 1 and 2 octave down tracking oscillators
specifications:
audio input level: up to 20v ptp
eq low freq boost/cut: ±9db, 600hz corner freq.
eq hi freq boost/cut: ±10db, 1.5khz corner freq.
cv input level: -10v - +10v
panel width: 16hp
module depth: 50mm
power consumption: 135ma@+12v, 87ma@-12v
