based on lessons learned from the syntrx, erica synths decided to create an instrument that would integrate even deeper into contemporary electronic and experimental music setups and cover sonic territory from daunting drones to powerful basslines and glitched
noisescapes - the syntrx ii is a new dark horse for experimental sonic rides.

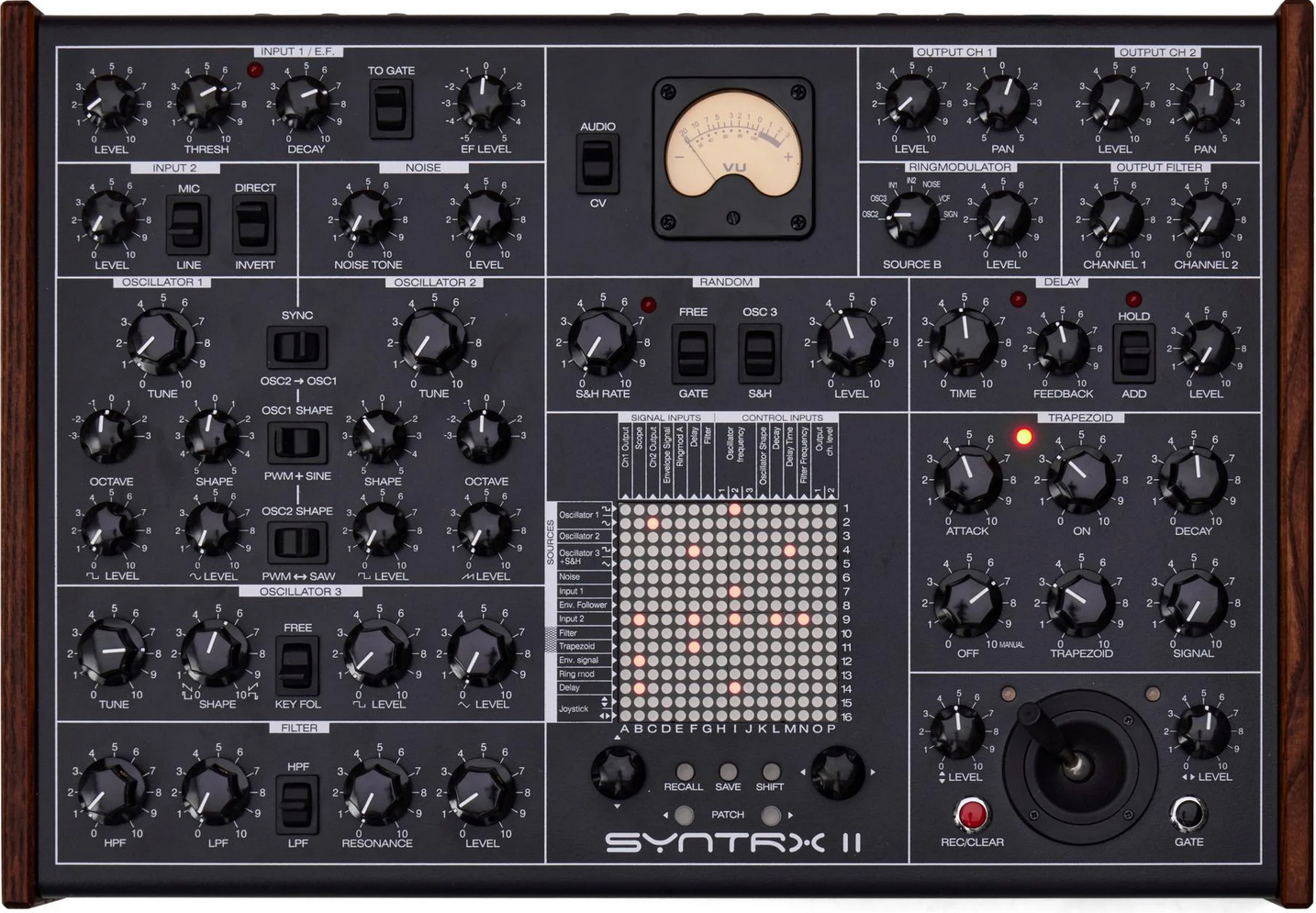

the syntrx ii is the culmination of their analogue sound design circuits - two perfectly stable main oscillators with waveshapers, a modulation oscillator with 1v/oct tracking, a versatile multimode filter, supercharged external instrument inputs with an
envelope follower, a unique, great-sounding ring modulator, a recordable joystick, built-in piano roll sequencer and stepped modulation sources, all arranged around our signature matrix mixer and topped off with powerful fx on our new dsp platform.
features and specifications:
two perfectly stable main oscillators with cv-controlled waveforms
modulation oscillator with variable waveforms
highpass and lowpass filters in series
free running or gate synced sample and hold circuit
multi-color noise generator
dc coupled instrument inputs with signal inversion and envelope follower
ring modulator of unique design
looping trapezoid envelope generator and vca
two output vcas
signal meter with a dedicated audio/cv output
fx section with great sounding delay and reverb developed in collaboration with 112db.com
recordable joystick
analogue patch matrix with 3 attenuation levels in each patch point
254 patch memory
piano roll sequencer and two stepper modulation sources
din5 midi input and midi thru
two assignable outputs
headphone output
dimensions: 309mm x 457mm x 115mm (with the joystick in centre position)
weight: 3.9 kg
