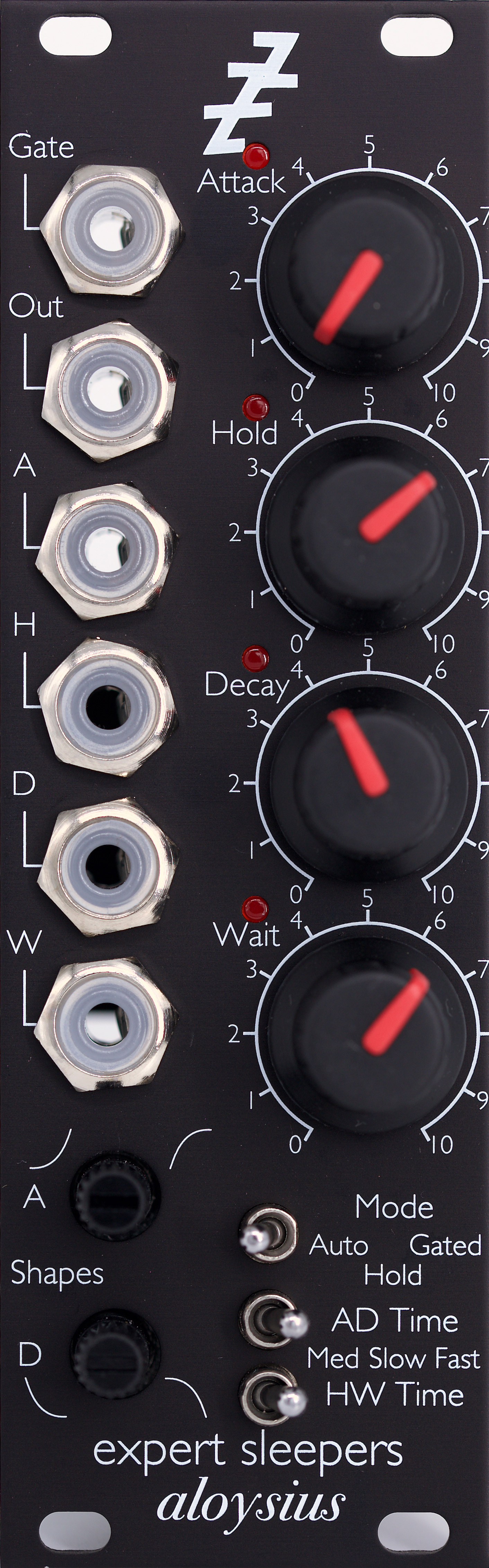

'aloysius' is an envelope with an unusual ahdw (attack/hold/decay/wait) configuration, sometimes referred to as a trapezoid generator. cv control of all envelope times is provided. the envelope can be set to auto-trigger, turning it into a complex
voltage-controlled lfo.
the shape of the attack and decay sections can be independently and continuously adjusted from exponential, through linear, to logarithmic.
the module is constructed entirely from analogue parts and discrete logic. there is no microcontroller or digital-to-analogue conversion involved and therefore no quantization of voltage levels or of the response time.
specifications
panel width: 8hp
module depth: 42mm
current draw: 43ma on the +12v rail, 25ma on the -12v rail
inputs:, gate input, cv inputs for attack, hold, decay, and wait
outputs: envelope output
