expert sleepers
disting ex

price : $399.00

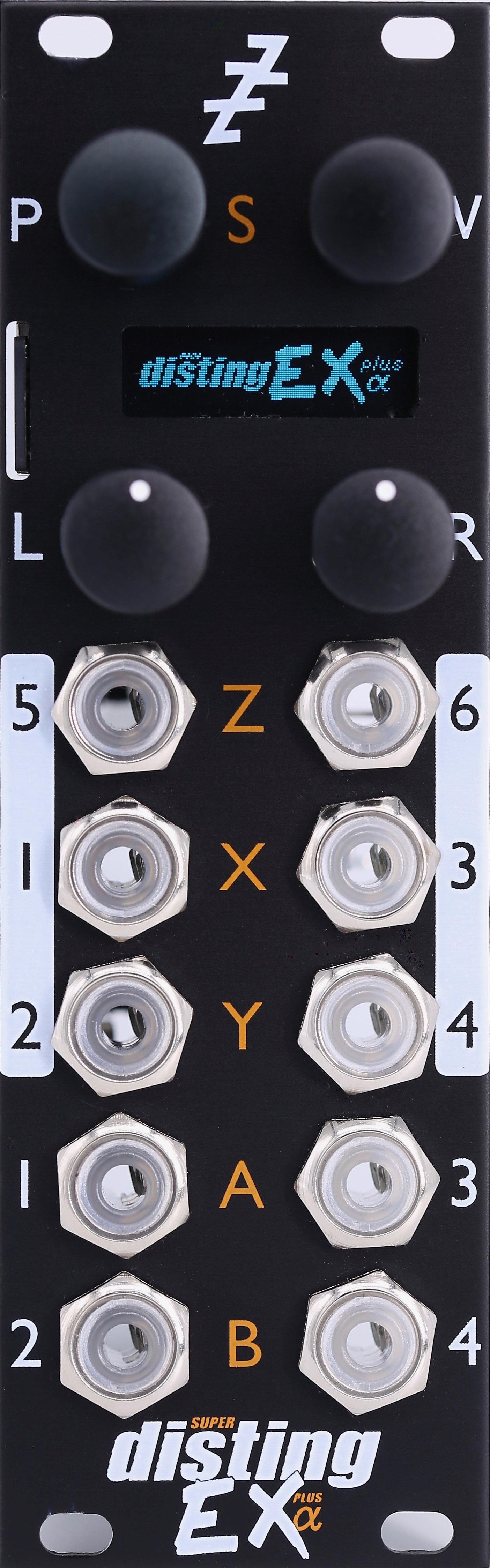

Disting EX

the disting ex is a multifunction eurorack module, building on the rich legacy of the previous disting incarnations, which can operate as two souped-up disting mk4s, or as a single powerful module in its own right.

fully dc-coupled, all inputs and outputs can be cvs or audio, depending on the selected function. the functions on offer include audio processing (filters, delays etc.), cv processing and generation (quantizers, pattern generators etc.), oscillators (vcos, lfos etc.), and sample playback.

brand new features for the disting ex include an eight voice polyphonic sample (wav) player, a powerful stereo tape delay (based on our own augustus loop), and a dedicated wav recorder mode.

when acting as two disting mk4s, the disting ex offers these advantages:
higher sample rate (96khz)
much more ram (so all delays, reverbs etc. can be much longer)
lower latency when triggering samples (now 700μs)
and of course, an oled display.

specifications:
panel width: 8hp
module depth: 50mm
current draw: 229ma on the +12v rail, 50ma on the -12v rail
input & output voltage range: ±10v

expansion:
header for 5-pin din midi via a compatible breakout.
header for connecting fhx-8cv or fhx-8gt expanders.
header for connecting an es-5 expander.
header for an i2c bus connection to compatible devices (e.g. the 16n faderbank)

compatible with the doepfer cv/gate bus and the select bus.

download the users manual here.
