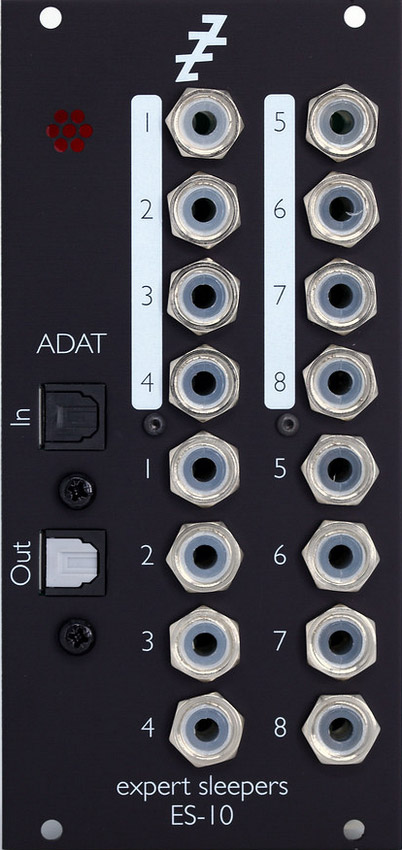

expert sleepers es-10: adat interface price : $359.00

the es-10 is a eurorack 8-in/8-out adat interface, with dc-coupled inputs and outputs that can be used for both audio and cvs.
each input can be individually selected for modular or line level operation.
the outputs can be expanded via the es-5 module.
the es-10 uses akm 'velvet sound' dacs and adcs and low noise audio op-amps for the best possible sound quality.
please note: the es-10 cannot be used without an adat input connection (from the adat output port of your audio interface).

compared to the es-3/6/7 the es-10 can be seen to offer the same functionality as the combination of an es-3, es-6, and es-7, but with these advantages:
less hp used
less deep
considerably less power consumption
better audio quality (lower noise)
option for line level input
specifications:
panel width: 12hp
module depth: 35mm (including power cable)
current draw: 132ma on the +12v rail, 90ma on the -12v rail

inputs:
8x 3.5mm ts jacks
dc or ac coupled
modular or line level
maximum voltage ±12v

outputs:
8x 3.5mm ts jacks
dc coupled
maximum voltage ±11v

expansion header: one for the es-5

download the user manual here.
