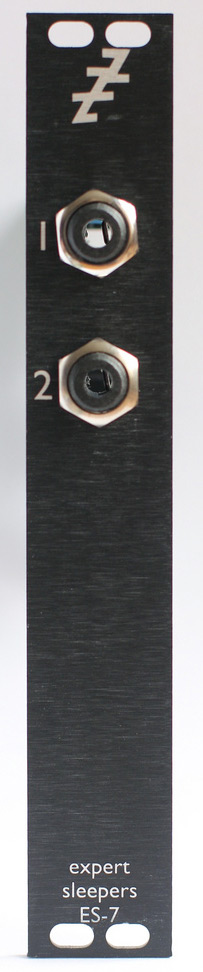

expert sleepers es-7
price : $120.00
|
|
the es-7 provides two channels of dc-coupled cv input to a connected es-4 or es-6 module. when used with an es-4, the es-7's inputs are provided on the es-4's s/pdif output jack. when used with an es-6, the
es-7's inputs provide channels 7 & 8 of the es-6's 8 channel lightpipe output.
specifications:
panel width: 4hp
module depth: 50mm
digital i/o: connection from es-4 or es-6 module
analogue inputs: 2x 3.5mm jacks, dc-coupled
input voltage range: ±10v
input impedance: effectively infinite (fet buffer)
a/d conversion: 24 bit, 103db snr typical
current draw: 27ma on the +12v rail, 10ma on the -12v rail (37ma total)
the front panel is drilled for both doepfer and analogue systems mounting holes (using a 'slot' rather than a single round hole). the power connector is a doepfer standard 16 way idc, with -12v furthest from
the top of the board.
|
