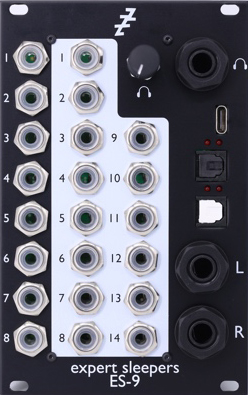

the es-9 is a eurorack 16-in/16-out usb audio interface, with dc-coupled inputs and outputs that can be used for both audio and cvs.
with its balanced ¼" main outputs & headphone socket, it's the perfect one-stop solution for integrating a modular synth and a laptop/tablet, either in the studio or when playing out at a gig.
the es-9's 14 analogue inputs allow simultaneous tracking or mixing of a large number of sound sources in your modular, while the 8 dc-coupled outputs are perfect for controlling the modular with silent way,
max/msp, ableton's cv tools, bitwig studio or similar, or for sending audio out to the modular for processing.
for even more outputs (up to 48 more), the es-9 can be expanded with the es-5. it also has a pair of s/pdif sockets for connecting other digital audio gear.
the es-9 also provides a pair of midi sockets (via a breakout).
specifications:
panel width: 16hp
module depth (including power cable): 50mm
current draw: 451ma on the +12v rail, 133ma on the -12v rail (at 96khz)
usb socket: type c
driver suport: class-compliant usb 2.0 (no driver required for macos and ios - windows drivers provided for windows 7, 8 & 10)
channel count: 16 in, 16 out
supported sample rates: 44.1khz, 48khz, 88.2khz, 96khz
audio sample depth: 24 bit
analogue outputs:
8x 3.5mm ts jacks, dc-coupled, maximum output voltage approximately ±10v
2x ¼" trs balanced jacks, ac-coupled (main outs)
1x ¼" trs stereo jack, dc-coupled (headphones)
analogue inputs: 14x 3.5mm ts jacks, dc-coupled, input voltage range approximately ±10v
digital i/o: 1x s/pdif input (toslink), 1x s/pdif output (toslink)
midi i/o: 1 input, 1 output (on breakout)
expansion headers: 1 for es-5, 1 for midi breakout
panel controls: headphone volume
internal mixer: 8x8 crosspoint mixer (can be used with no usb connection for standalone operation)
