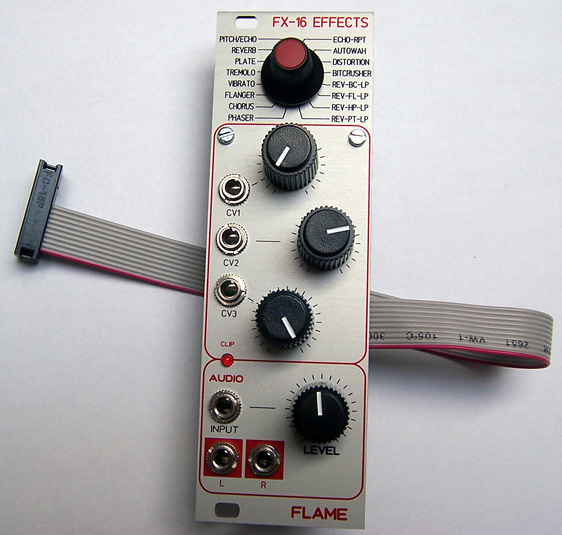

flame fx-16 effects price : $249.00

the flame "fx-16" module is a small dsp-based (spin semiconductors fv-1, 24bit adc/dac) multi effect module, designed for small mobile euro racks. 16 different multi effect programs are available. there are three knobs with additional cv inputs (0..+5v range) to change the effect parameters. audio mono input and stereo output levels are adjusted for modular rack levels. the input can be attanuated and is protected against level peaks. the outputs are buffered by an op-amp. one red led indicates clipping.

list of multi effects:
pitch/echo
reverb
plate
reverb-tremolo
reverb-vibrato
reverb-flanger
reverb-chorus
reverb-phaser
echo/repeat (pingpong delay)
auto-wah
distortion-lowpass-reverb
bitcrusher-lowpass
reverb-bitcrusher-lowpass
reverb-flanger-lowpass
reverb-highpass-lowpass
reverb-pitchshifter-lowpass

technical details:
connections:
ribbon cable adapter for doepfer bus +/-12volt
inputs: 1x mono audio, 1/8th inch mono jacks, 3x cv 0..+5v, 1/8th inch mono jacks
outputs: stereo audio left, right, 1/8th inch mono jacks

control elements:
1 rotary switch to select effects
4 knobs for effect parameters/gain input
1 led to indicate clipping

current consumption: + 55ma / - 1ma

size: euro rack format 3u / 8hp 40,3x128,5mm

click here for the user manual.
