flight of harmony power (eurorack format; with u.s. adaptor)
price : $99.00
|
|
power (eurorack format; without adaptor)
price : $85.00
| |

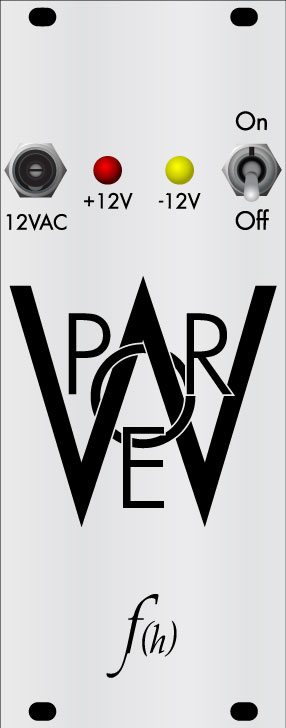

power is a 10hp power supply for eurorack systems, has outputs of ±12vdc at 1a each, on/off switch, and indicator leds for each rail. the mounting depth is 40mm (1 9/16?). it uses a 12vac wall adapter
(included) to keep the transformer outside of the rack and avoid hum and magnetic coupling issues. includes 13 doepfer-style 18awg wire harness with quick-connect connectors.
specifications:
adapter:
nominal output voltage: 12vac
rated output current: 1000ma or greater
connector:
type of plug: barrel style
inner diameter: 2.1mm
outer diameter: 5.5mm
length of barrel: 9.5mm
|
