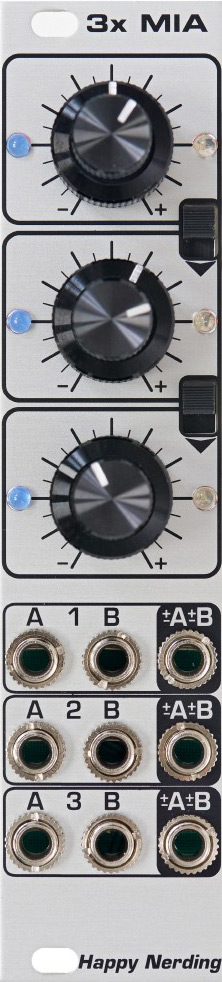

happy nerding 3x mia: silver
price : $100.00
| ![3X MIA: Silver 3X MIA: Silver](3xmias.jpg)
|

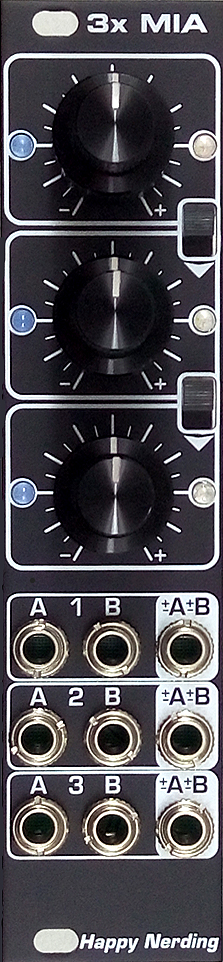

3x mia: black
price : $100.00
| ![3X MIA: Black 3X MIA: Black](blacks.jpg)
|

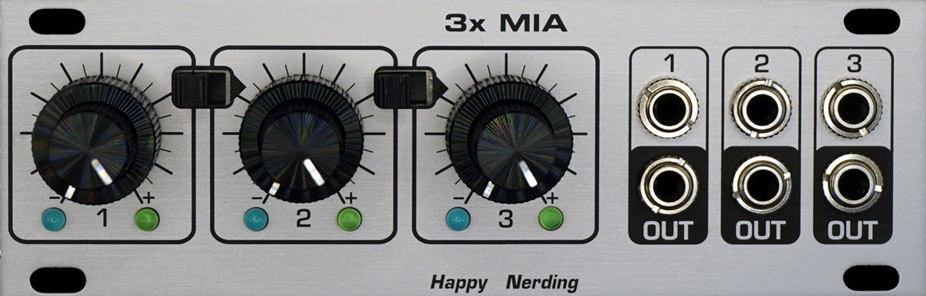

3x mia 1u: silver
price : $100.00
| ![3X MIA 1U: Silver 3X MIA 1U: Silver](1u-silvers.jpg)
|

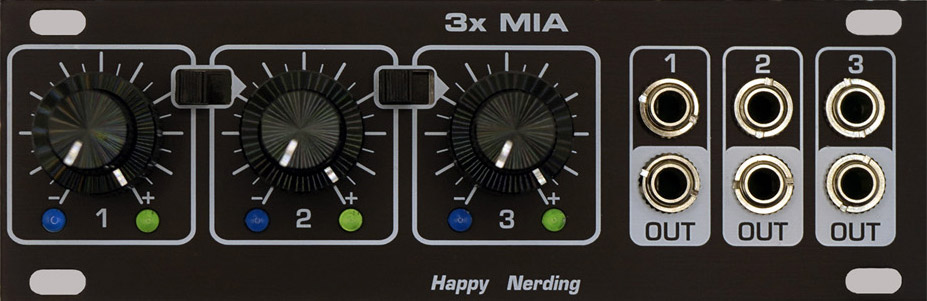

3x mia 1u: black
price : $100.00
| ![3X MIA 1U: Black 3X MIA 1U: Black](1u-blacks.jpg)
|
3x mia is a 6-channel attenuverting mixer/offset/scale/polarizer. 3 blocks of 2-channel attenuverting mixers, using dual concentric pots. each channel can be switched to mix with the subsequent channel,
allowing for 2-2-2, 4-2, 6 mix configurations. with nothing plugged into an input, an offset is normalled to that channel. the inner knobs control the a inputs, while the outer knobs control the b inputs. dc
coupled, so it can be used for audio, cv, or both at the same time.
specifications:
80 ma ±12v
35 mm depth
6 hp wide
|
