happy nerding
panmix jr.: silver

price : $100.00

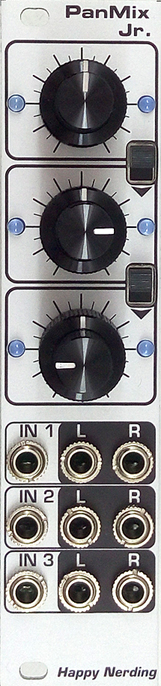

PanMix Jr.: Silver

panmix jr.: black

price : $100.00

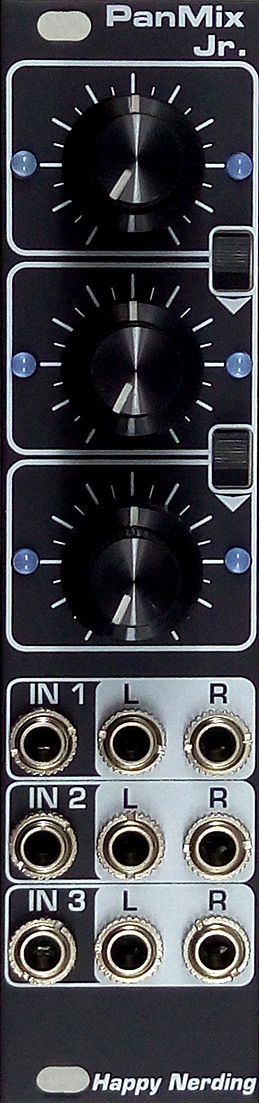

PanMix Jr.: Black

panmix jr is a high quality 3 channel mixer with manual panning and volume controls with dual concentric knobs. each channel's output is separately available. also channels 1 and 2 can be switched to be mixed with the subsequent channel, allowing for 1-1-1, 1-2, 3 mix configurations. equal power pan law (3db) is provided. left and right led indicators available for all three channels.

several modules can be chained together via connections on the back side. this connection is possible with other happy nerding stereo modules too. at the moment panmix jr stereo output can be internally send to 3x stereo mixer and isolator module. or stereo signal can be received from out, 3x stereo mixer and latest revision of panmix.

specifications:
55 ma ±12v
35 mm depth
6 hp wide
