mindphaser

price : $559.00

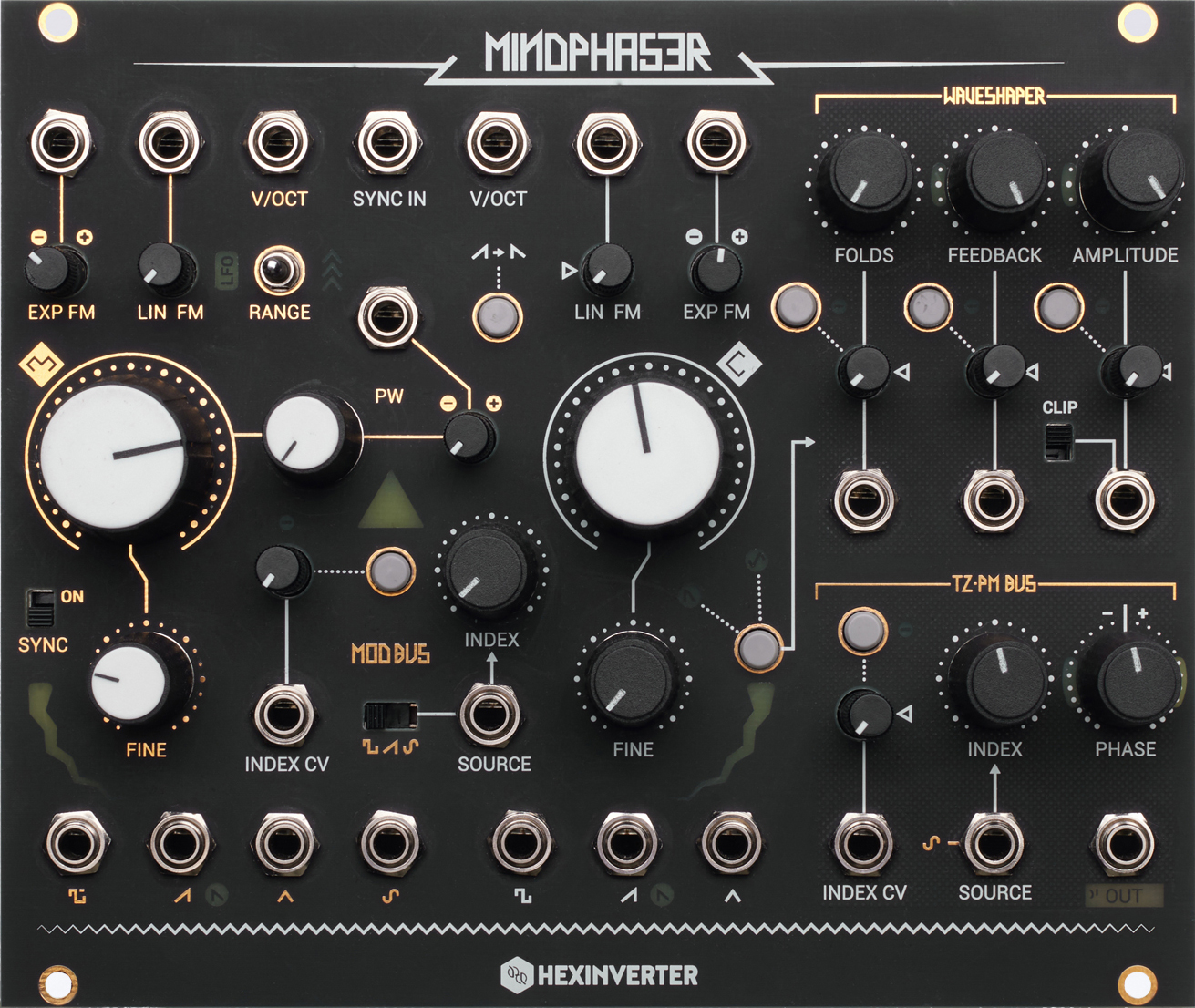

Mindphaser

mindphaser is a next generation complex dual oscillator for the eurorack modular synthesizer format. its dual oscillator architecture builds on and advances principles developed decades ago, by pioneers of electronic music synthesis.

mindphaser generates sounds through its dual vco cores: the carrier and modulator, and in addition to these cores, a palette of intermodulation capability is offered through the modulation bus (modbus) and a separate, supplementary through-zero phase modulation (tz-pm) bus. the sound is further sculpted by a final set of tools contained in the waveshaper, before reaching the final output.

specifications:
width: 30hp
depth: 24mm
current draw: +188ma, -107ma

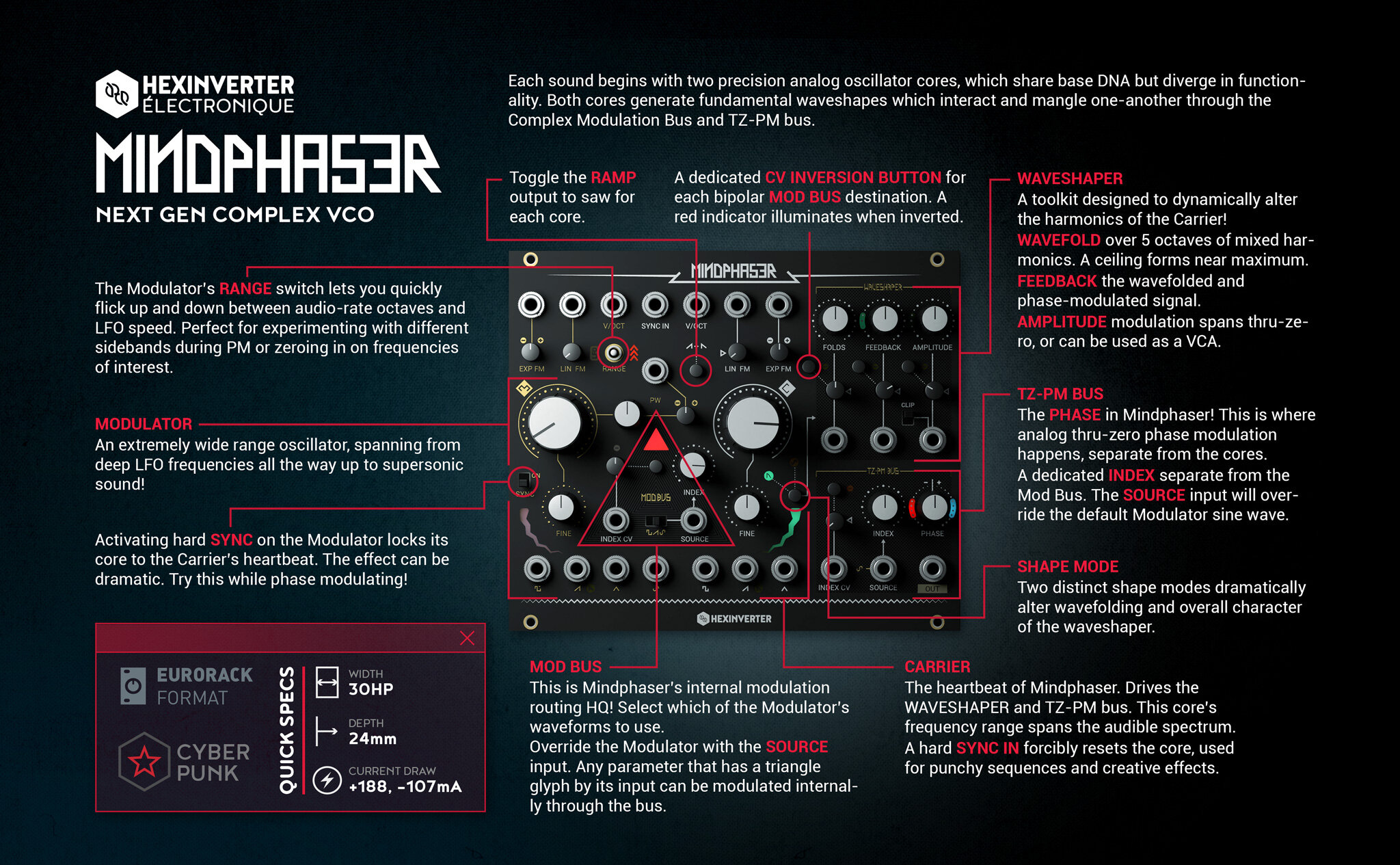

download the users manual here.
