add some chaos to your order. at its core noise tools generates pulses and a noise signal, these provide the normalled signals for a sample/track and hold circuit and a slew circuit. patch in your own signal to break the normals, we're sure you have some ideas.
a toolbox full of surprises
though many consider noise to be an undesirable and unwanted nuisance, synthesists know its value as a source of breathy nuance, crackling sizzle, chaotic roars and subtle silkiness. when applied effectively, it can add that touch of the unexpected and the random, which brings a patch to life.

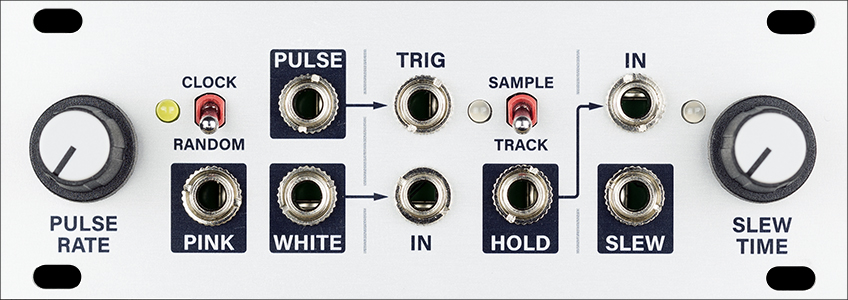

noise tools provides this essential dose of randomness in three blocks. first is a pulse output, switchable between a steady clock or a random flurry of gates. second is a sample and hold circuit. third is a slew limiter. the blocks feed each other from left to right, but feature inputs to break this normalling, providing a useful
balance of functionality and flexibility.
features:
clock and random pulse source with adjustable rate
analog pink and white noise source with very accurate spectrum
analog sample / track and hold with very low droop
analog slew with adjustable slew rate.
specifications:
22hp
max depth: 29 mm
power: 22 ma @ +12 v, 19 ma @ -12 v
