intellijel designs quadratt 1u
price : $79.00
|

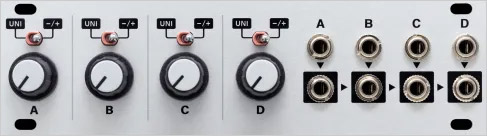

![Quadratt 1U Quadratt 1U](quadratt1us.jpg)
|
the shorter and wider brother to the popular triatt module!
the four handy knobs can act as active attenuators (unipolar) or attenuverters (bipolar) depending on the setting of the two-position switches above each one.
each input is normalled to a precision +5v dc voltage source. with nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 v or -5 to +5 v depending on the position of the mode
switch.
features:
2 modes for each channel
5v normalled to each input
with external signals it acts as active/buffered attenuator/attenuverter/mixer
each output normalled to mix into the adjacent channel on the right making it possible to do sub mixes in groups of 2, 3 or all four channels.
specifications:
width: 28 hp
max depth: 25 mm
power: 24 ma @ +12 v, 23 ma @ -12 v
|
