intellijel designs
sealegs

price : $439.00

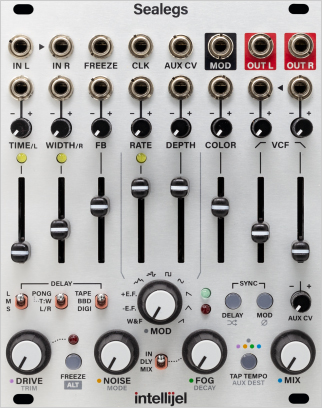

Sealegs

sealegs is a collection of effects centered around a true stereo multi-model delay. tape, bucket brigade, and crossfading digital models; a saturating input drive; low- and high-pass filters; crackle & hiss generator; a multi-position 1970s-inspired reverb; internal modulators; nine cv inputs with attenuverters; three sets of ranges; clock sync/tap tempo; three unique stereo configurations.

calm waters, rolling waves, or wild storms - the weather is up to you.

warm feelings
intellijel design's design goal for sealegs was to create the warmest, most musical and organic delay module possible - something that would sweeten and enhance any audio one chose to feed into it. as such, great care has gone into modeling the most distinctive and desirable sonic characteristics of three different types of delay circuits: tape, bucket brigade, and crossfading digital.

a plethora of onboard controls enable you to dial in exactly the sound you want; synced or un-synced delays times (for both left and right channels); saturating input drive; a built-in modulator with 7 morphing waveshapes, wow & flutter emulation, and an envelope follower; plus dedicated low- and high-pass filters; built-in hiss & crackle noises; per-model color controls; a spacious reverb; and a re-configurable signal flow through the unit. in addition, attenuverted modulation inputs abound - ensuring the delay ebbs and flows with your musical needs.

features:
three unique delay models - tape, bucket brigade, and crossfading digital
per-model color, modulation behavior, and saturation/limiting
true stereo delay with separate l/r buffers
three stereo configurations (pong, time/width, l/r)
three range variations for short chorus/flanger style delays to long ambient repeats.
up to 6(l) and 8(r) seconds of delay time (width can add up to 33% to time)
built in modulator with wow & flutter, envelope follower, and 7 morphing wave shapes
lush 1970s-inspired reverb with 3 insert positions.
saturating input drive with level trim
stable external clock (or tap tempo) sync for delay times or modulation
highpass and lowpass filters for filtered repeats
freeze functionality for holding the buffer and looping
nine cv inputs with attenuverters
96 khz 24-bit stereo i/o and 32-bit floating point internal processing

specifications:
width: 20hp
depth: 29mm
power: 116ma @ +12v, 10ma @ -12v

download the users manual here.
