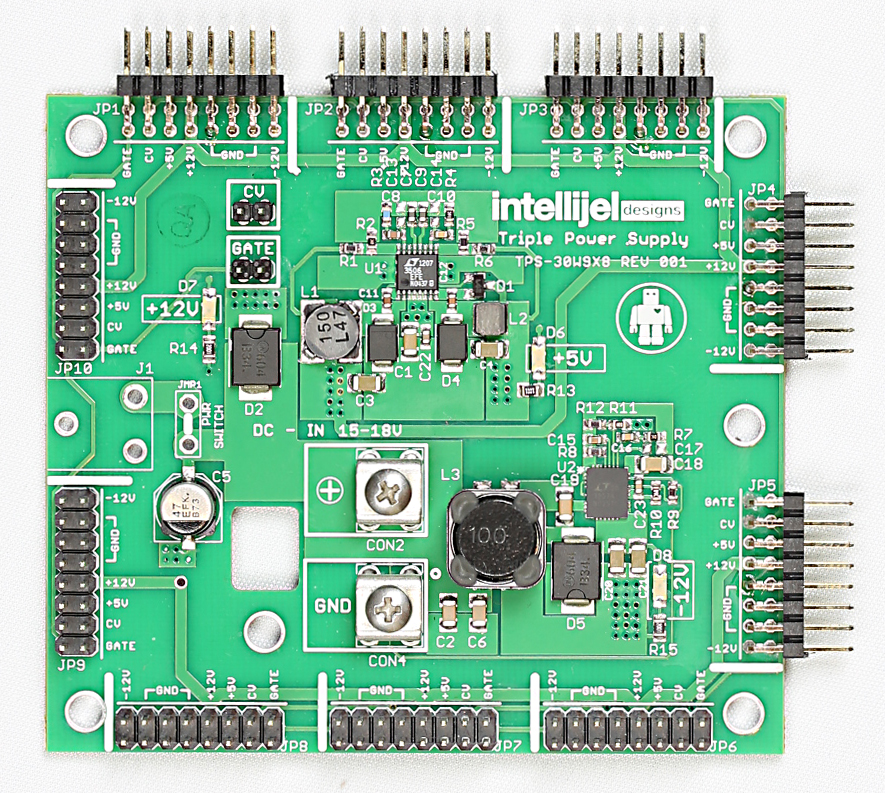

intellijel designs tps30w: mini triple power supply price : $120.00

the tps30w is a high power, super efficient and low noise studio grade power system for your eurorack modular. we carefully designed this power supply to perform optimally with even the most demanding, noisy and power hungry modules in your rig.

featuers:
30 watt integrated switching power supply
low impedance star distribution due to 4 layer pcb
+12v output at 1.2a, -12v output at 1.2a, +5v output at 500ma
triple 120° phased controller for low induced noise
output short circuit protection and foldback current limiting
output overvoltage protection from transient overshooting
soft start for controlled start up operation
±1% output voltage accuracy
fits comfortably in an tiny skiff but can also span up to 84hp 3u / 6u case
connect up to 10 eurorack modules.
can be used to expand on the tps80w or other tps30w by chaining the dc inputs.
9cm wide x 8cm tall and max height of 20mm
mounting holes can be used with 0.157" / 4mm pem snaps for quick install

*we highly recommend powering the tps30w with the meanwell gs40a15-p1j 90w ac/dc psu
