isobar industries
mimic
price : $85.00
|
 |

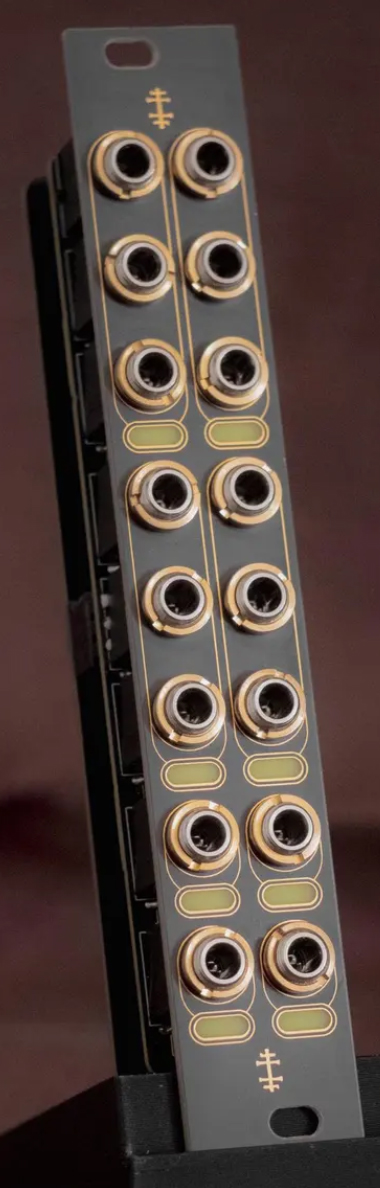

mimic is a 4hp quad buffered mult with a performance oriented design, having inputs all localized to the bottom of the module and outputs at the top. the module can be flipped upside down and jumpers swapped on the back to have the normalling work in either orientation. each channel has color-coded leds for even easier visualization
of each channel.
features:
inputs are all on one side of the module, so the outputs are more accessible in a performance environment.
left-right normalling is reversible depending on if you wish to use the module with inputs at the top or bottom.
3 outputs per mult channel
fully buffered
suitable for cv or audio multiplying
distinct color coding per channel. red, yellow, green, blue
specifications:
height: 3u (128.5mm)
width: 4hp (20.3mm)
depth from panel: 23mm
depth total (including knobs and ribbon cable): 51mm
|
