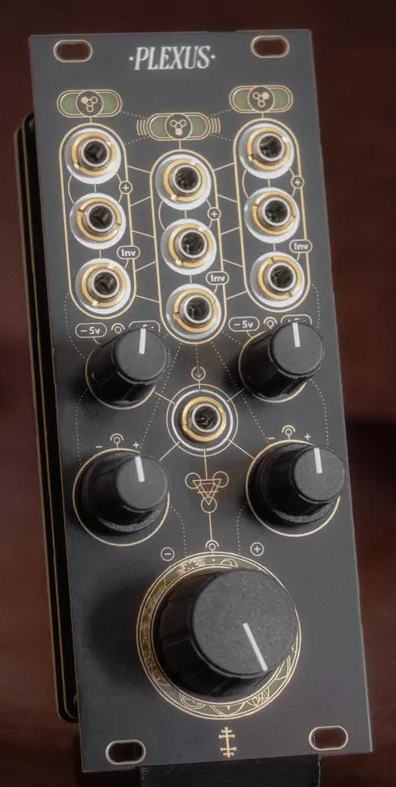

features:
center channel: offset or attenuverter
left and right channels: independent offsets and attenuverters derived from center channel signal
9 outputs total (3 per channel - 2 regular outs and one inverted)
voltage range: -5v to +5v (center), -10v to +10v (sides)
dc coupled for audio and cv processing
2x bipolar led indicators per channel (red = positive voltage, blue = negative voltage)
uses:
control multiple parameters of multiple modules at once
create buffered multiples with variations
voltage offsetting and scaling
attenuate one input with precision, with multiple varied outputs.
specs:
height: 3u (128.5mm)
width: 10hp (50.8mm)
depth from panel: 23mm
depth total (including knobs and ribbon cable): 51mm
