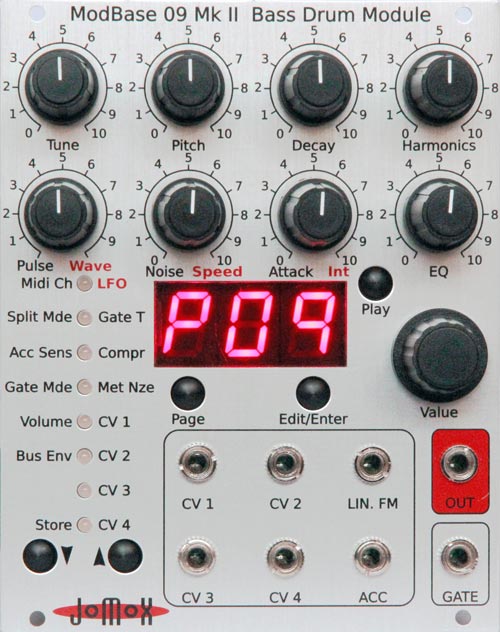

jomox modbase 09 mk ii price : $399.00

the modbase09 gets a successor which convincingly continues the concept of a storeable and analogue kick drum with cv/gate in the eurorack world.

features:
tune
varies the pitch envelope of the vco

pitch
basses as low as 10hz reach up to 175hz
decay up to 2 sec

harmonics
enrichment of harmonics of the vco - for the hardest kick drums on planet earth

pulse
change of the pure pulse part of the attack - gate time affects this parameter also

noise
change of the pure noise part of the attack - gate time affects this parameter also

attack
level of the mixing of pulse and attack

eq
filters the bass drum with a low pass filter - for soft and 808ish kick drums

gate t
varies the gate time from 0.1ms to 16ms

compr
compression of decaying envelope - for slim and clicky kicks and all the depth that is needed

metnze
metalized noise. a complex digital multitone pattern of 499 different combinations feeds the attack noise

cv1-cv4
can route the external 0-5v cv signals to any of the above parameters including lfos. also negative amounts are processed.

lin.
fm this is a true analog dedicated cv fm modulation input for the bass drum vco. it only works linear-wise and does not offer musical semitones across the cv scale.

acc
this is a cv input for the kick drum accent / velocity. this input may also trigger the kick drum dynamically if the acc trigger mode is set and the sequencer is able to generate dynamic pulses.

lfo
the modbase 09 has 2 lfos that work on the pitch of the bass drum. the lfo always starts syncronous to the gate trigger. the wave forms are: saw up, saw down, sine+/-, triangle+/-, rectangle+/- and portions of it.

midi
the midi controllers of this module are identical to the alpha base/xbase999/mbase11. all parameters including lfos can be remotely controlled by midi ccs.

bus
env is the programmable level of the audio out signal from the bus on the back mixed to the kick drum vca envelope. works with experimental jayemsonic modules.

specifications:
measures height: 3 ru, size: 20 hp, depth: 53mm
power usage: ~120-140ma on +12v, ~80ma on -12v

download the users manual here.
