joranalogue audio design
enhance 2: stereophonic enhancer

price : $214.99

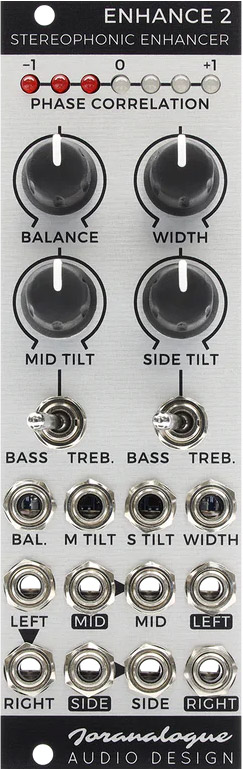

Enhance 2: Stereophonic Enhancer

moving from mono to stereo sound: a logical progression for any synthesist looking to expand their sonic palette. making use of two audio channels, rather than just one, quite literally adds another dimension to the capabilities of a synthesiser.

unfortunately, controlling stereo signals can be a challenge within a modular system. this realisation led to the development of enhance 2: a convenient yet high-fidelity tool for stereo enhancement. it can be used to adjust balance, width and spectral content, while also opening up a world of mid/side processing; all under voltage control and in just 8 hp.

the primary stereo parameters are balance (moving the sound left or right) and width (making it narrower or wider). the balance circuit uses a true constant-power gain law, while the width stage allows for seamless transitions from pure mono to extra-wide stereo.

in addition, tone control is provided by a pair of unique, wide-ranging mid/side voltage controlled tilt filters with selectable corner frequency. these make 'cleaning up' a muddy-sounding mix straightforward, but also provide unique binaural effects when modulated.

mid/side processing encodes the stereo signals into one containing only the mono material (mid), and another containing the differences between both channels (side). apart from the internal tilt filters, mid/side outputs also enable external signal processing such as compression or reverberation. an integrated mid/side decoder returns the results back to standard stereo. and at all times, a led bar phase meter ensures that phase correlation can be easily maintained.

stereo field modulation, mid/side equalisation and beyond; enhance 2 brings true analogue stereo control to the eurorack world.

features:
analogue stereophonic signal enhancer/processor.
true constant-power voltage controlled stereo balance.
voltage controlled stereo width, from mono to ultra-wide.
unique, wide-ranging voltage controlled mid/side tilt filters with selectable corner frequency.
stereo to mid/side and mid/side to stereo conversion.
impedance-compensated outputs.
7-led phase correlation meter.
bullet-proof design: polarised power header and mosfet protection circuit.
includes 16-to-10-pin eurorack power ribbon cable.
premium mounting hardware: black screws, black nylon washers and matching hex key.
high-quality components and assembly; designed and made in belgium.

specifications:
8 hp
+12: 70 ma, -12: 70 ma

download the user manual here.
