select 2: dual gated precision control voltage processor

price : $179.99



Select 2: Dual Gated Precision Control Voltage Processor

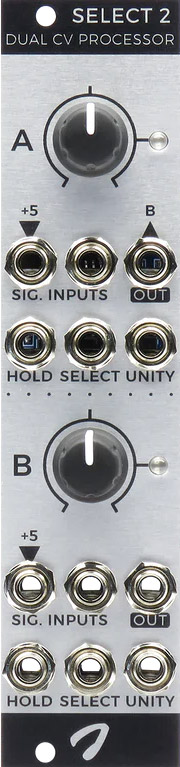

a 'swiss army knife' for your modular system, select 2 provides two highly accurate gate-controlled voltage processors in 6 hp. these allow you to create, switch, mute, hold, invert, attenuate, offset, add/mix and subtract voltages, from slow control voltages (cv) up to audio frequencies.

each processor features two signal inputs, with the left input used by default. a gate on the 'select' input switches to the right signal input instead. the signal inputs are normalised to the precision +5 v reference (left) and 0 v (right).

following the input section is a hold circuit. a rising edge on the 'hold' input freezes the input voltage at that moment, until the gate input goes low again. while most sample/track-and-hold modules only manage a few seconds, select 2's 'low droop' design enables it to store a held voltage accurately for several minutes.

the end of the signal path consists of a gated polariser/attenuverter. using the knob, the voltage at the output can attenuated and/or inverted: the gain is -1 (inverted) at the minimum setting, 0 at the centre and +1 (unity gain) at the maximum. the polariser can be disabled using the 'unity' gate input. this unique ability enables a variety of interesting gate-controlled signal modulations. dual-colour leds show the output voltage of each processor.

finally, if the a output socket is left unused, the signal is mixed together with the b output. this enables signal offsetting, cv mixing, pitch transposing etc.

features:
two precision analogue cv processors with input selection, voltage hold and gated polariser functionalities.
left signal inputs are normalised to the precision +5 v reference, right inputs to 0 v. switched using 'select' gate input.
high-performance 'low droop' hold circuitry: stays pitch-accurate for several minutes.
unique gated polarisers, which can be switched off (unity gain) via gate inputs.
normalised mixing: leave the a output unused to mix it with the b output signal.
dual-colour red/blue leds for output voltage indication.
precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
bullet-proof design: polarised power header and mosfet protection circuit.
includes 16-to-10-pin eurorack power ribbon cable.
premium mounting hardware: black screws, black nylon washers and matching hex key.
high-quality components and assembly; designed and made in belgium.

specifications:
6 hp
+12: 25 ma, -12: 25 ma

download the user manual here.
