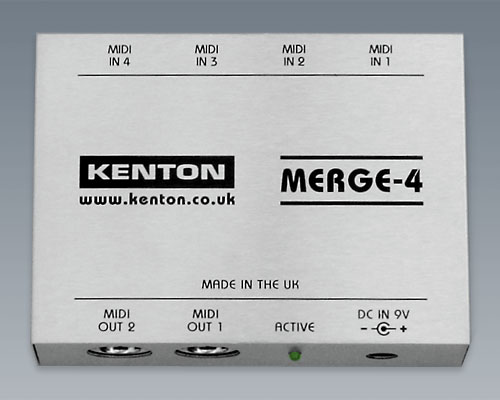

![](/techspec/_01analogue-no.gif) ![](/techspec/_02digital-yes.gif) ![](/techspec/_03hybrid-no.gif) ![](/techspec/_04sampler-no.gif) ![](/techspec/_05arp-no.gif) ![](/techspec/_06sequencer-no.gif) ![](/techspec/_07vocoder-no.gif) ![](/techspec/_08fx-no.gif) ![](/techspec/_09drums-no.gif) ![](/techspec/_10hd-no.gif) ![](/techspec/_11poly-no.gif) ![](/techspec/_12multi-no.gif) ![](/techspec/_13midi-yes.gif) ![](/techspec/_14cv-no.gif) ![](/techspec/_15module-no.gif) ![](/techspec/_16key-no.gif) ![](/techspec/_17rack-no.gif) ![](/techspec/_18table-yes.gif) ![](/techspec/_19audio-no.gif) ![](/techspec/_20pdf-no.gif) | kenton electronics merge-4 price : $145.00 |
| 4 opto-isolated midi ins and 2 midi outs. powered from a mains adaptor (wall wart) so you can fit and forget.
features:
4 x midi in
2 x midi out (both carry identical midi data)
merges all midi data including sysex and clock
dc power input jack 2.1mm (centre +ve)
power indicator light
9v unregulated power supply included (uk, eu and usa types available)
we automatically ship the correct power supply for the destination country.
housed in a metal box so it can withstand the knocks
attractively finished in brushed aluminium with black screen print
dimensions: 110mm x 80mm x 35mm
weight: 700g including power supply
|
