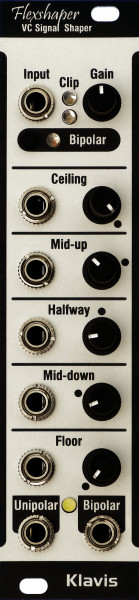

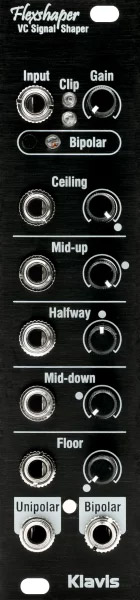

klavis flexshaper: voltage mapper & waveshaper price : $156.00

the flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels. five settings allow you to fold/expand/clip/compress/invert partially or completely any cv or audio signal. the module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more. five cv inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

features:
process from dc to full audio range
unipolar/bipolar input mode switch
nominal & clip level leds
output signal led
input gain setting for nominal level setting, allows clean flat clipping when overdriven
five manual voltage mapping potentiometers
five cv control of the voltage mapping points
simultaneously active unipolar and bipolar outputs
settings restored after power cycle
firmware update via a simple audio file
compact and skiff-friendly module

specifications:
mechanical:
height: 128.40 mm, 5.06 in, 3 he
width: 30.00 mm, 1.18 in, 6 hp
depth behind panel (with supply cable inserted): 21.00 mm, 0.83in

supply:
+12v, 6ma; -12v, 7ma; +5v, 32ma

download the users manual here.
